Plan No. 2130
$1,395.00

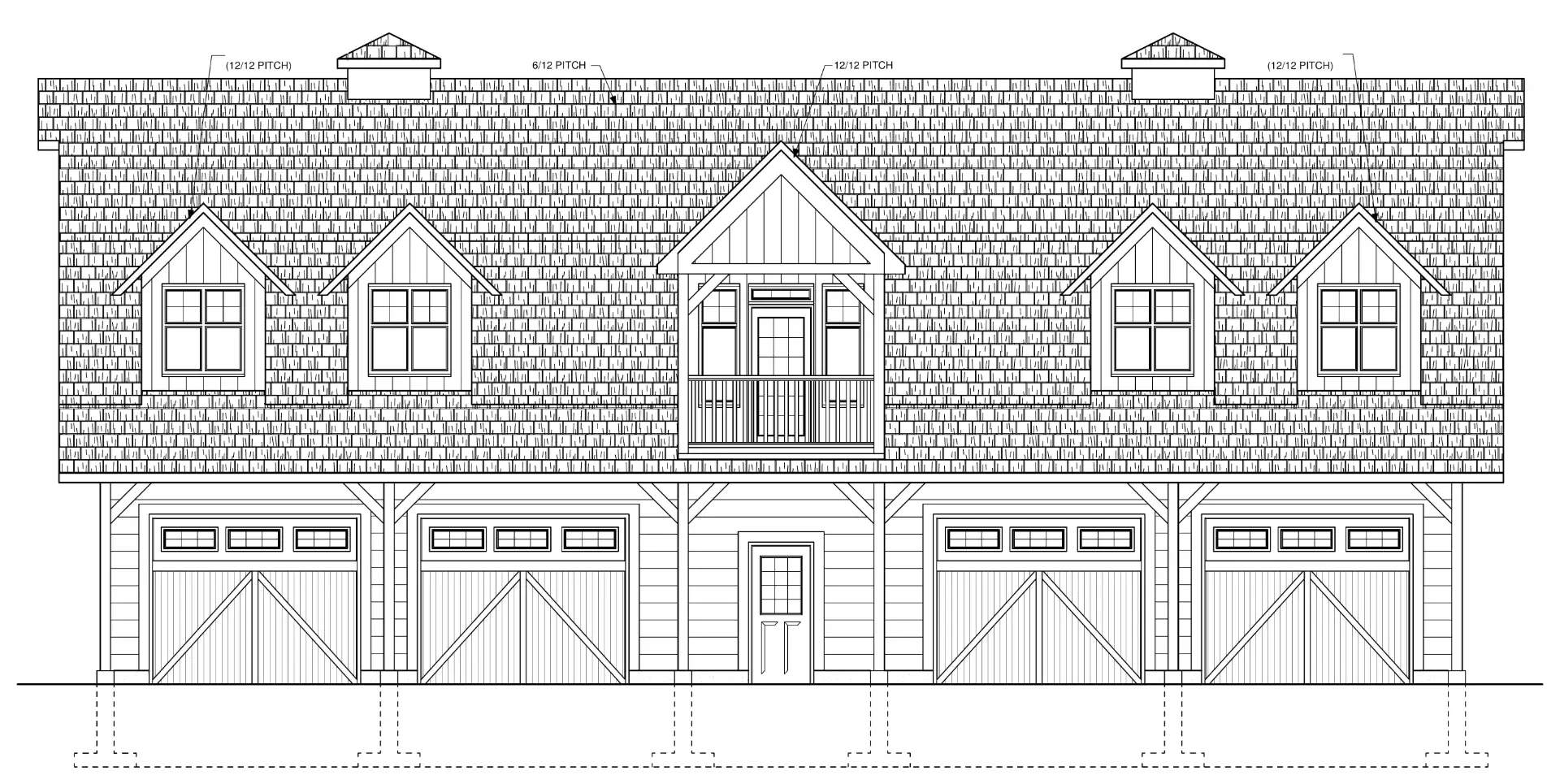

This gambrel barndominium puts 2,036 sq. ft. of living space over a 2,132 sq. ft. shop with four 10' overhead doors, split into two large bays on either side of a central entry and stair. Upstairs, the great room, dining area and an island kitchen with an eating bar and walk-in pantry share one big open space. The master bedroom has a two-way fireplace shared with its ensuite, a jet tub, a separate shower and a walk-in closet. A second bedroom has its own bath next door, and a den with its own kitchenette, pantry and laundry works well as a guest or in-law suite. Dormers and cupolas break up the roof, and a balcony looks out over the front.
General specifications
- Total living area
- 2,132 sq.ft.
- 2nd level
- 2,132 sq.ft.
- Stories
- 2
- Walk out basement
- No
- Width
- 66'0"
- Depth
- 42'0"
- Ceiling style
- Flat
- Exterior wall
- 2x6
- Foundation type included in the plan
- 4FT Concrete Frost Wall - Slab On Grade
Room breakdown
- Bedroom(s)
- 2
- Convertible (max bedrooms)
- 2
- Full baths
- 2
- Garage type
- Four-car garage (65'0" × 31'0")
- Bonus room over garage
- No
Main Floor
| Rooms | Sizes | Details |
|---|---|---|
| Garage | — | 4 Car Garage |
| Mechanical room | — | — |

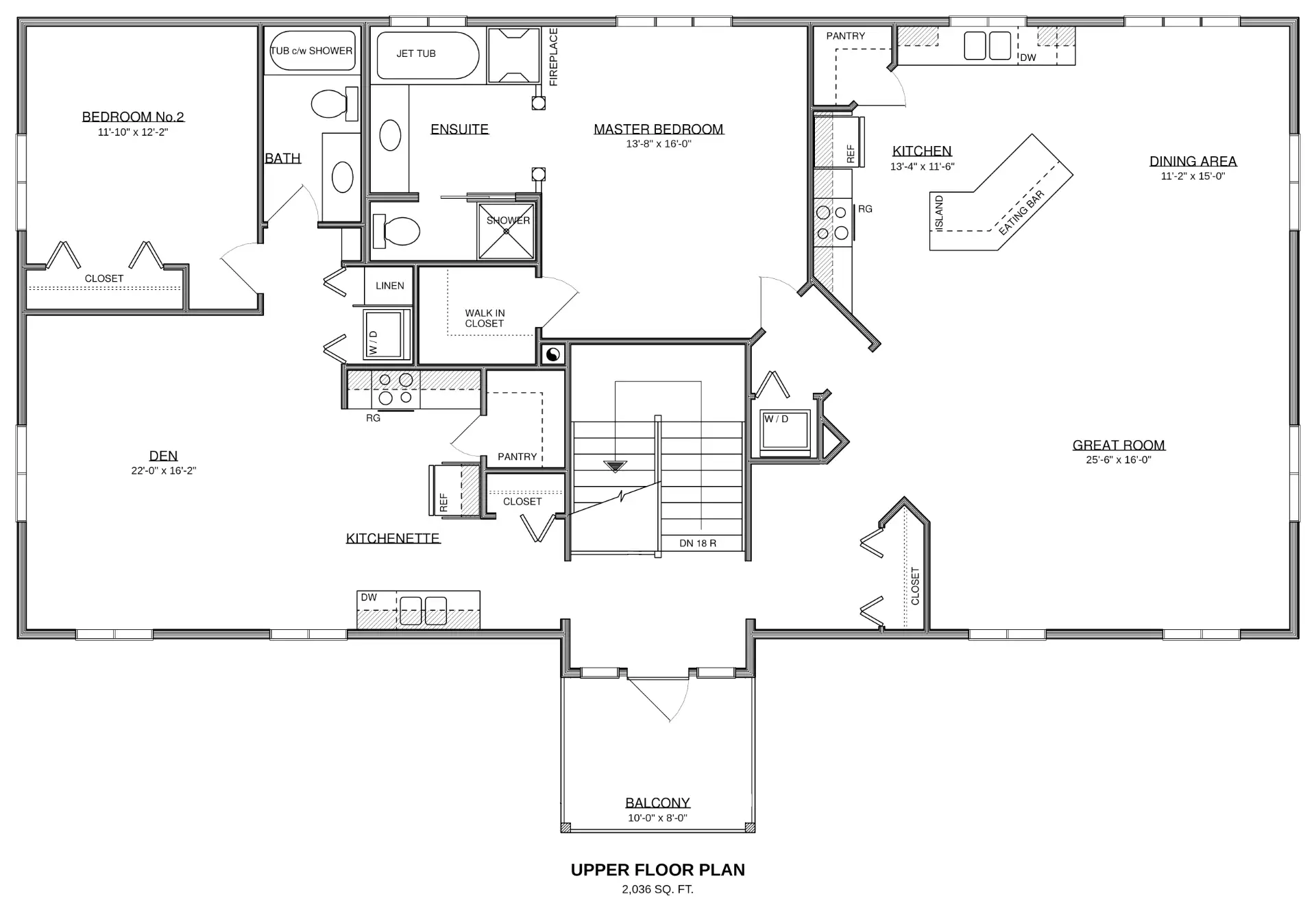

Second Floor
| Rooms | Sizes | Details |
|---|---|---|
| Kitchen | 13'-4" x 11'-6" | Island, Walk-In Pantry |
| Den/Kitchenette | 22'-0" x 16'-2" | Kitchenette, Walk-In Pantry |
| Master bedroom | 13'-8" x 16'-0" | Ensuite, Walk-In Closet, Fireplace |
| Bedroom No.2 | 11'-10" x 12'-2" | — |
| Ensuite | — | 4-piece |
| Bathroom | — | — |
| Laundry room | — | Stacking W/D |
| Great room | 25'-6" x 16'-0" | — |
| Walk-In Pantry | — | — |
