Plan No. 2922
$1,795.00

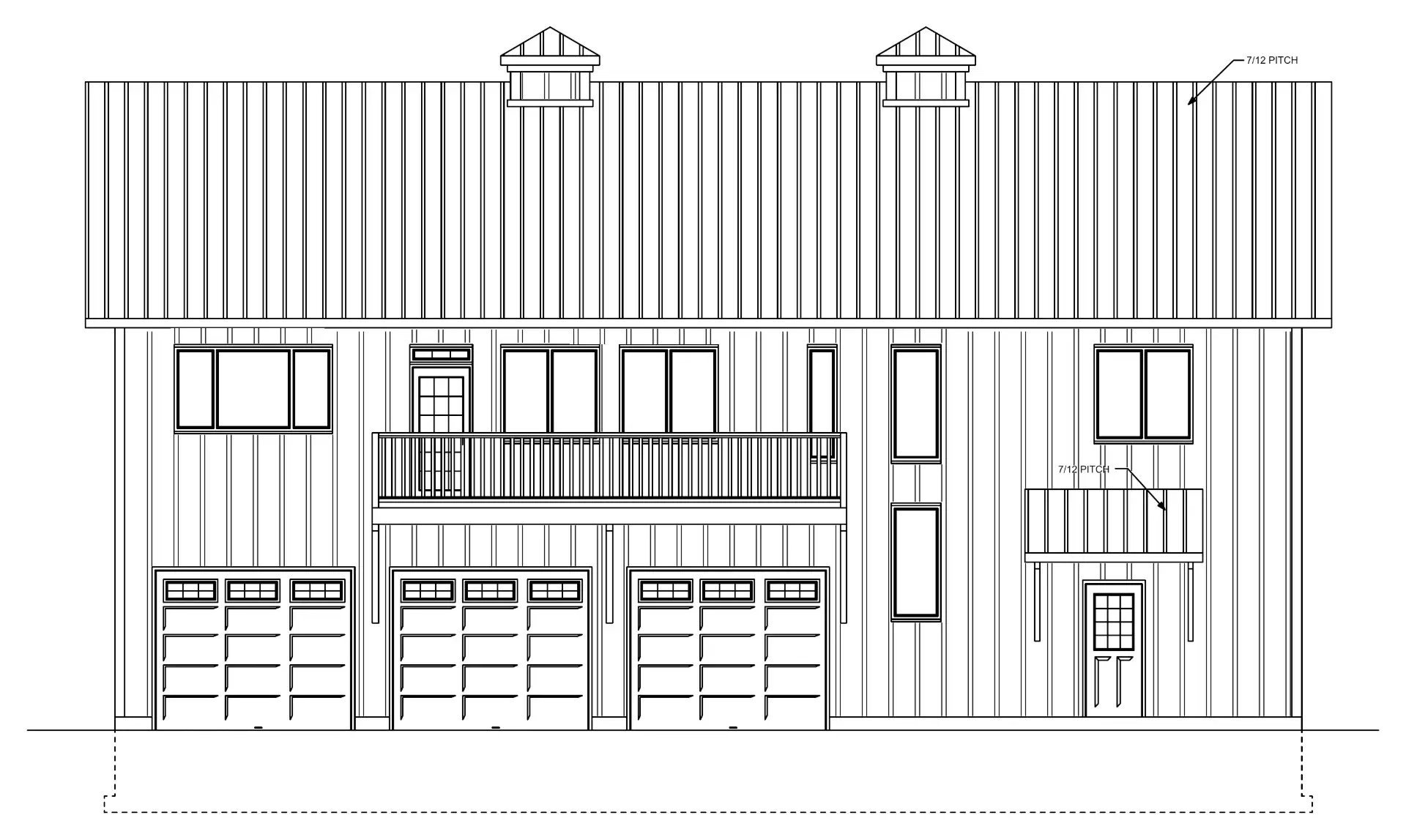

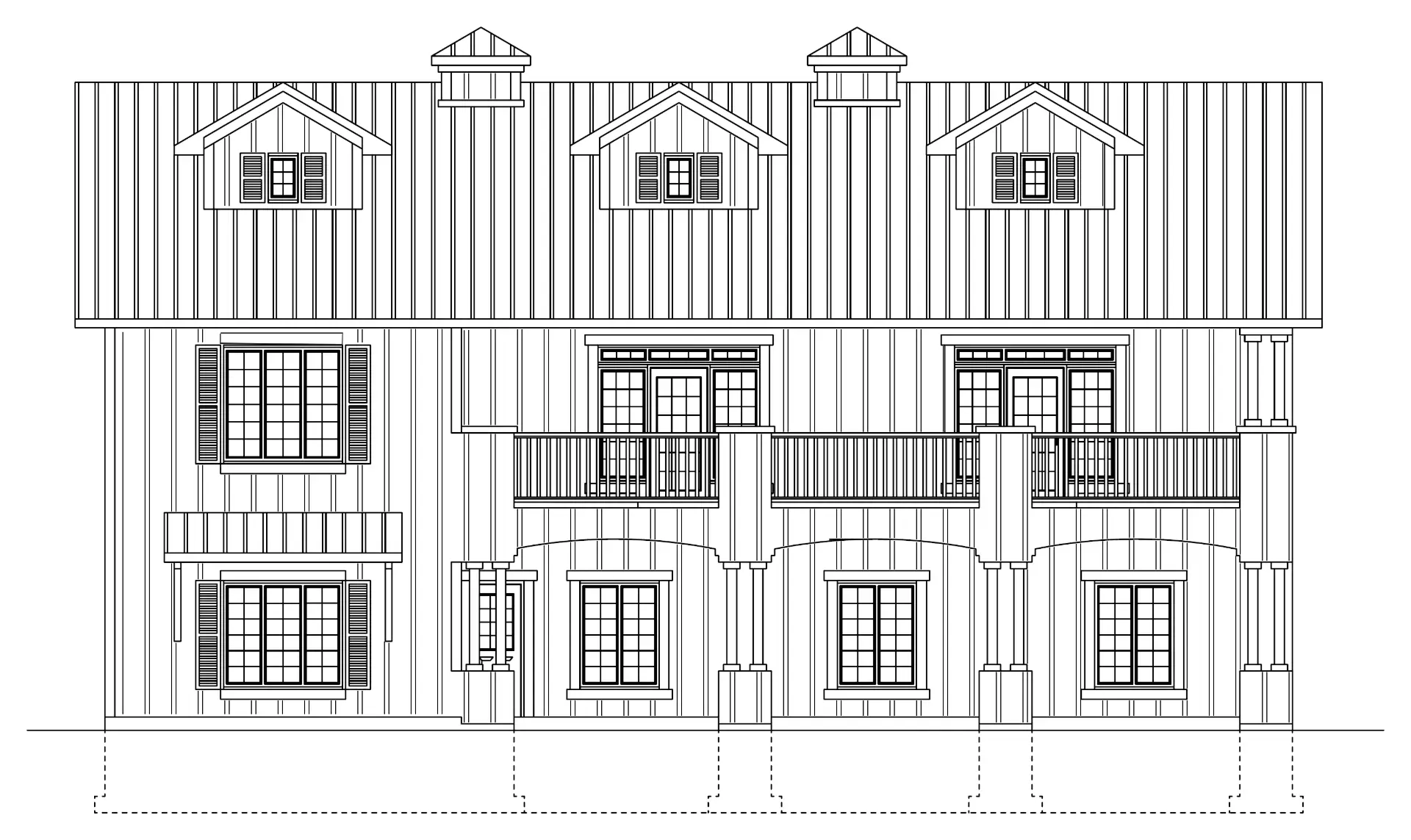

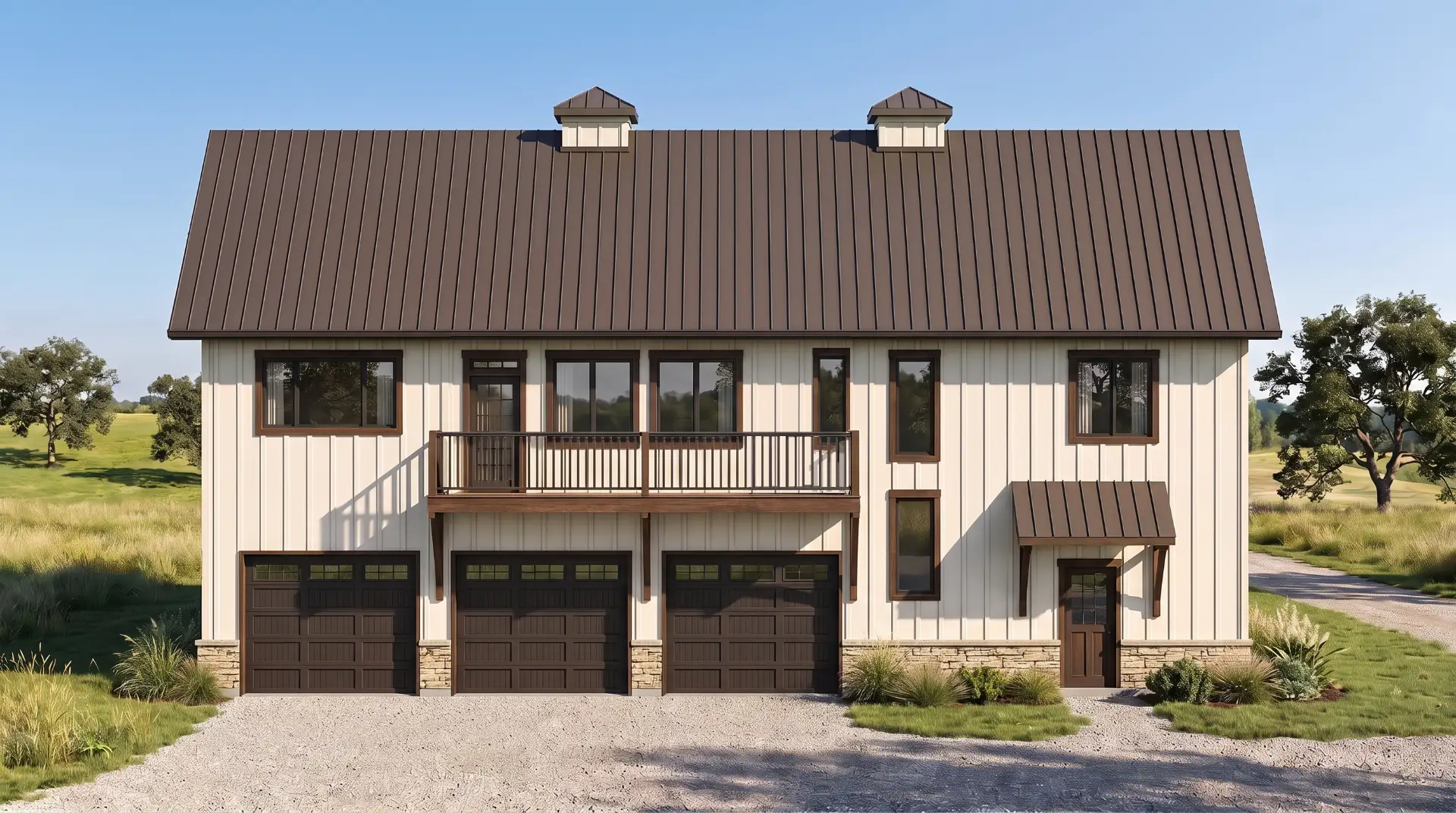

Built with ICF walls, this 2,430 sq. ft. two storey puts its 1,710 sq. ft. of living space on the upper floor, above a 37' x 28' triple garage. A metal roof with dormers and cupolas sits over vertical siding, and a full-width veranda along the front carries a covered deck above it. Upstairs, the dining area, kitchen and great room share one big open space, with an angled island and eating bar, a walk-in pantry, a fireplace set into built-in shelves and a wood stove in the corner. An office sits between the great room and the bedrooms, a second bedroom sits near the main bath, and the master bedroom has a walk-in closet and an ensuite. The ground floor holds the foyer, laundry, a full bath, the mechanical room and a large storage room beside the garage.
General specifications
- Total living area
- 2,430 sq.ft.
- 1st level
- 720 sq.ft.
- 2nd level
- 1,710 sq.ft.
- Stories
- 2
- Walk out basement
- No
- Width
- 60'0"
- Depth
- 38'0"
- Exterior wall
- ICF
- Foundation type included in the plan
- ICF-9FT
Room breakdown
- Bedroom(s)
- 2–4
- Convertible (max bedrooms)
- 4
- Full baths
- 3
- Garage type
- Three-car garage (37'0" × 28'0")
- Bonus room over garage
- No

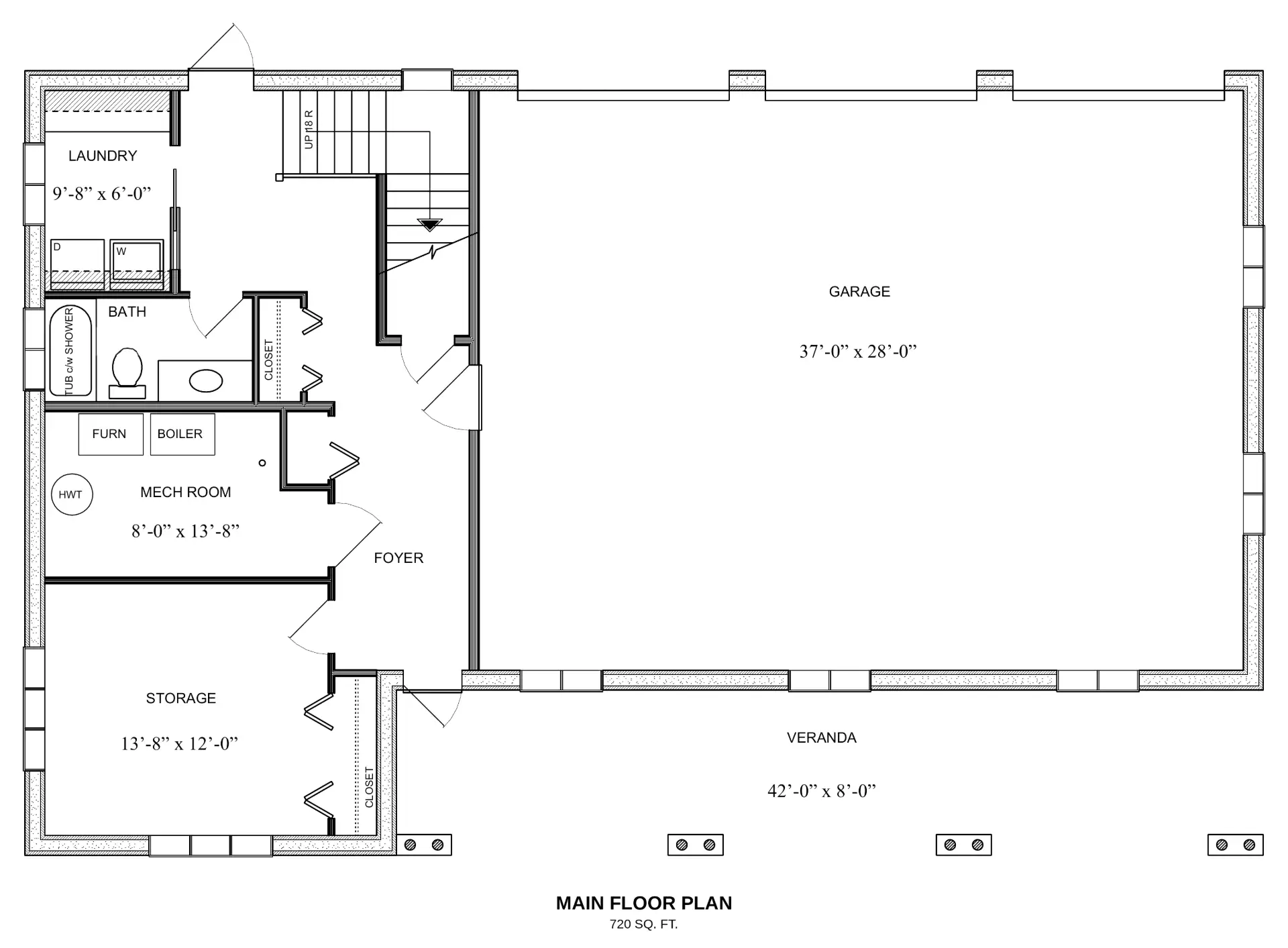

Main Floor
| Rooms | Sizes | Details |
|---|---|---|
| Laundry room | 9'-8" x 6'-0" | — |
| Mechanical room | 8'-0" x 13'-8" | — |
| Bathroom | — | 3-piece |
| Storage | 13'-8" x 12'-0" | — |
| Entry/Foyer | — | — |
Second Floor
| Rooms | Sizes | Details |
|---|---|---|
| Kitchen | 13'-0" x 13'-0" | Island |
| Dining room | 17'-6" x 17'-8" | — |
| Great room | 21'-6" x 15'-0" | Wood stove |
| Master bedroom | 16'-0" x 13'-0" | — |
| Bedroom No.2 | 13'-0" x 10'-0" | — |
| Ensuite | — | 3-piece |
| Bathroom | — | 3-piece |
| Walk-in closet | — | — |
| Pantry | — | Walk-in pantry |
