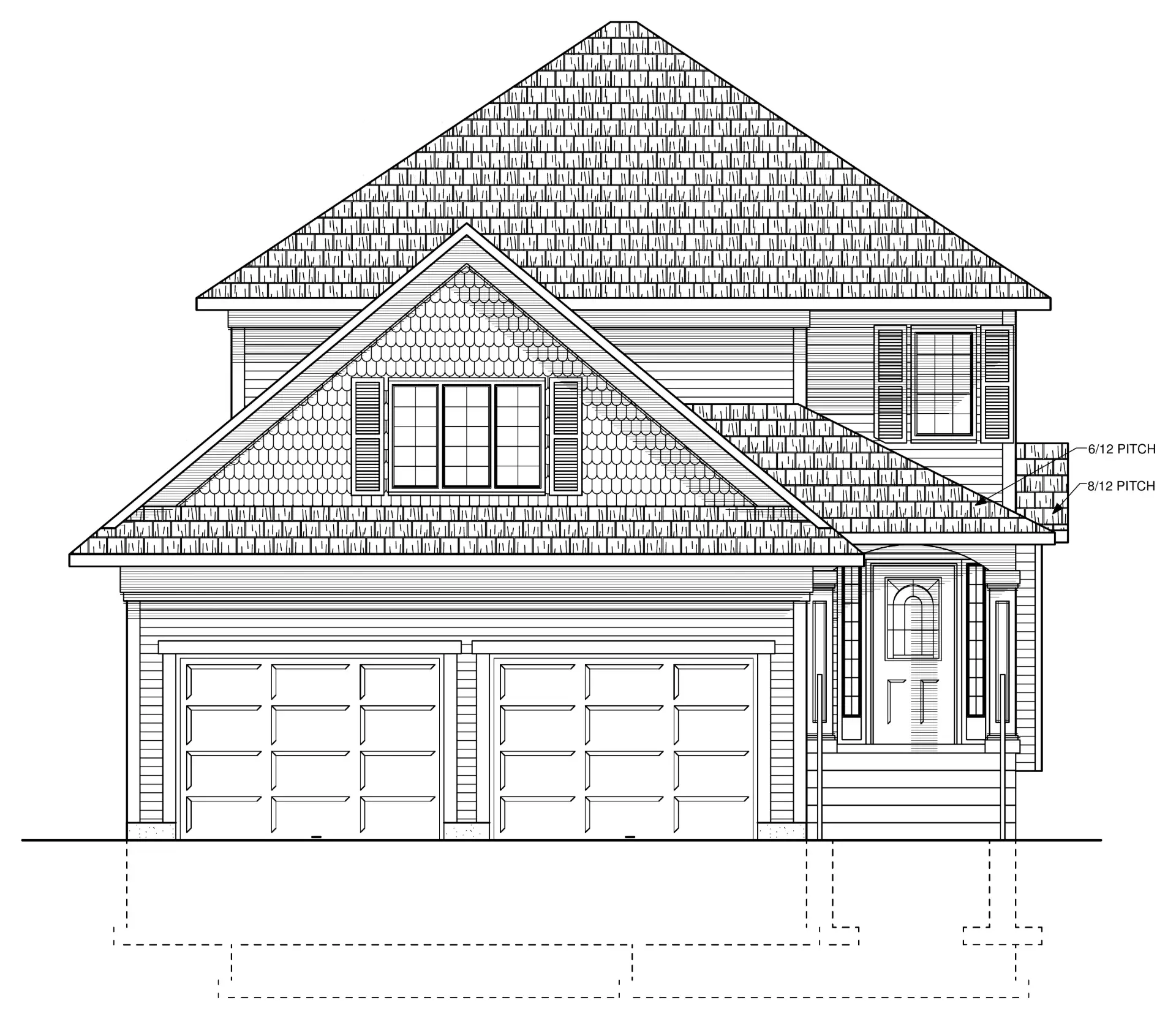

Plan No. 2997 outdoor 1

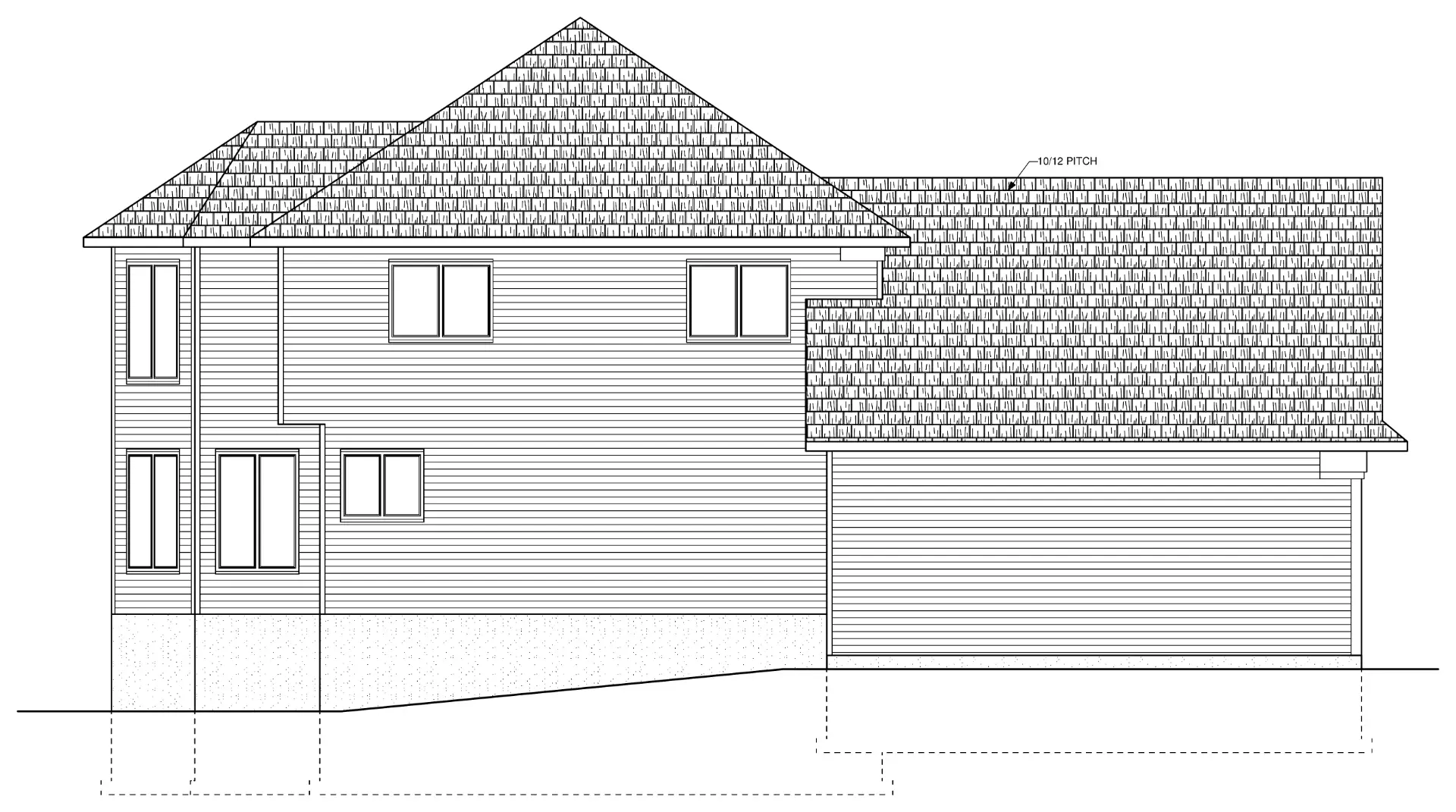

Plan No. 2997 outdoor 2

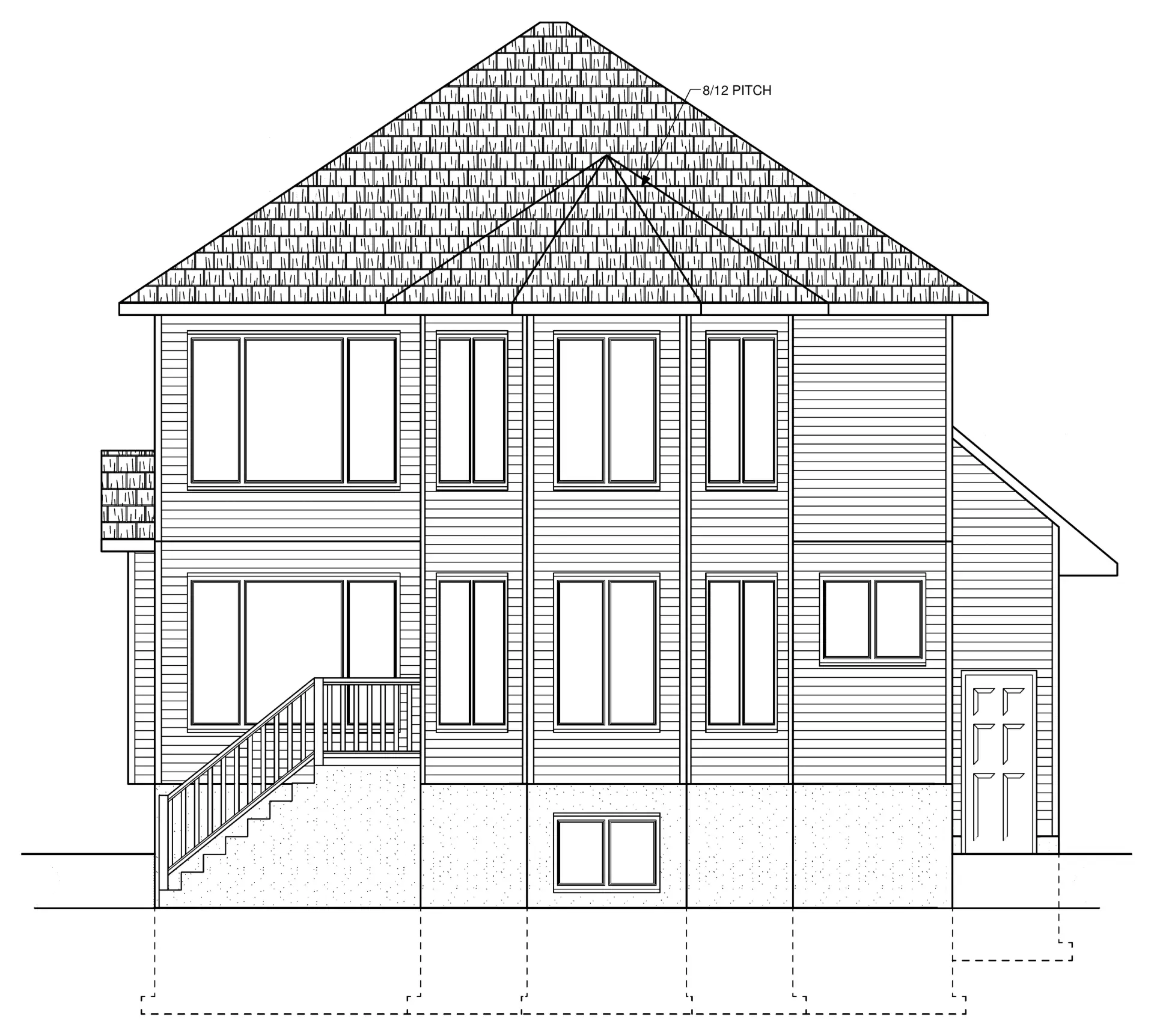

Plan No. 2997 outdoor 3

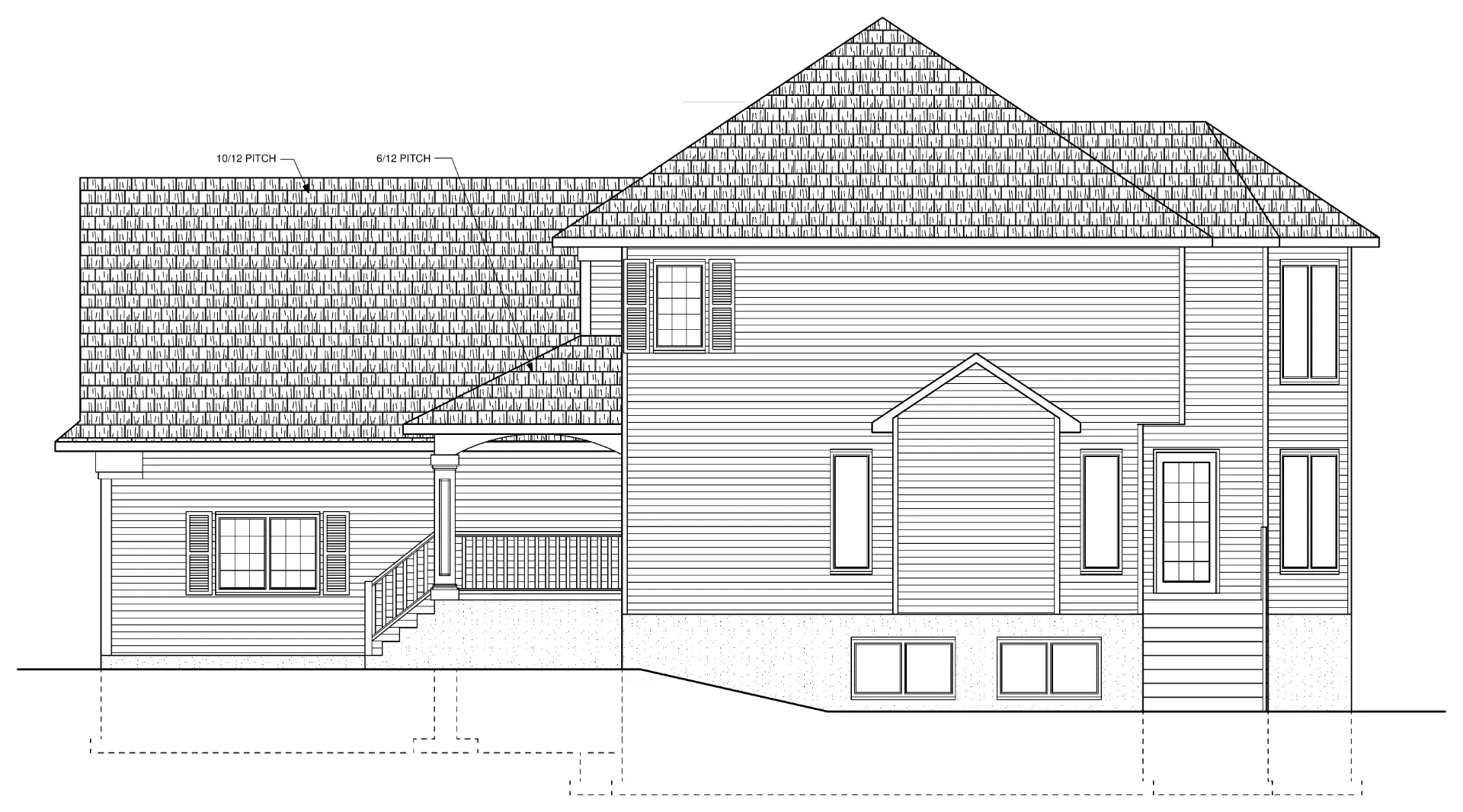

Plan No. 2997 outdoor 4
Exterior & Interior Views (5)
Floor Plans (3)

Plan No. 2997

Two Story

$1,395.00

1816 sqft • 3–4 bed • 3.5 bath

Designed for a 40-foot wide lot, this 1,816 sq. ft. two storey stacks a lot of house on a narrow footprint, with a double garage and a covered veranda out front and a 354 sq. ft. bonus room over the garage. The entry steps up into a bright great room with a fireplace between shelves, an angled kitchen island and a walk-through pantry, while an octagonal dining bay at the back leads out to the deck. A mud room with laundry and a lav sits a few steps down at the garage level. Upstairs, the master has its own octagonal sitting area, a walk-in closet and an ensuite with a corner air tub, a separate shower and a double vanity. Two more bedrooms, one with a window seat, share the main bath. The optional basement developement adds a bedroom, a full bath and a family room with a bar.

Purchase options are not configured for this plan yet.

General specifications

Total living area
1,816 sq.ft.
1st level
922 sq.ft.
2nd level
894 sq.ft.
Stories
2
Walk out basement
No
Width
30'0"
Depth
60'0"
Ceiling style
Flat
Exterior wall
2x6
Foundation type included in the plan
Standard Concrete 8FT

Room breakdown

Bedroom(s)
3–4
Convertible (max bedrooms)
4
Full baths
3
Half baths
1
Garage type
Two-car garage (25'0" × 23'6")
Bonus room over garage
Yes

Main Floor

RoomsSizesDetails
Kitchen11'-4" x 14'-0"Island
Great room18'-2" x 15'-1"Fireplace
Dining room14'-0" x 10'-0"—
Bathroom—2-piece

Second Floor

RoomsSizesDetails
Master bedroom15'-0" x 12'-4"Sitting area, Walk-in Closet, Ensuite
Bathroom—3-piece
Bedroom No.211'-0" x 12'-0"—
Bedroom No.311'-2" x 9'-8"—
Ensuite—5-piece
Sitting Area13'-0" x 8'-0"Master Bedroom

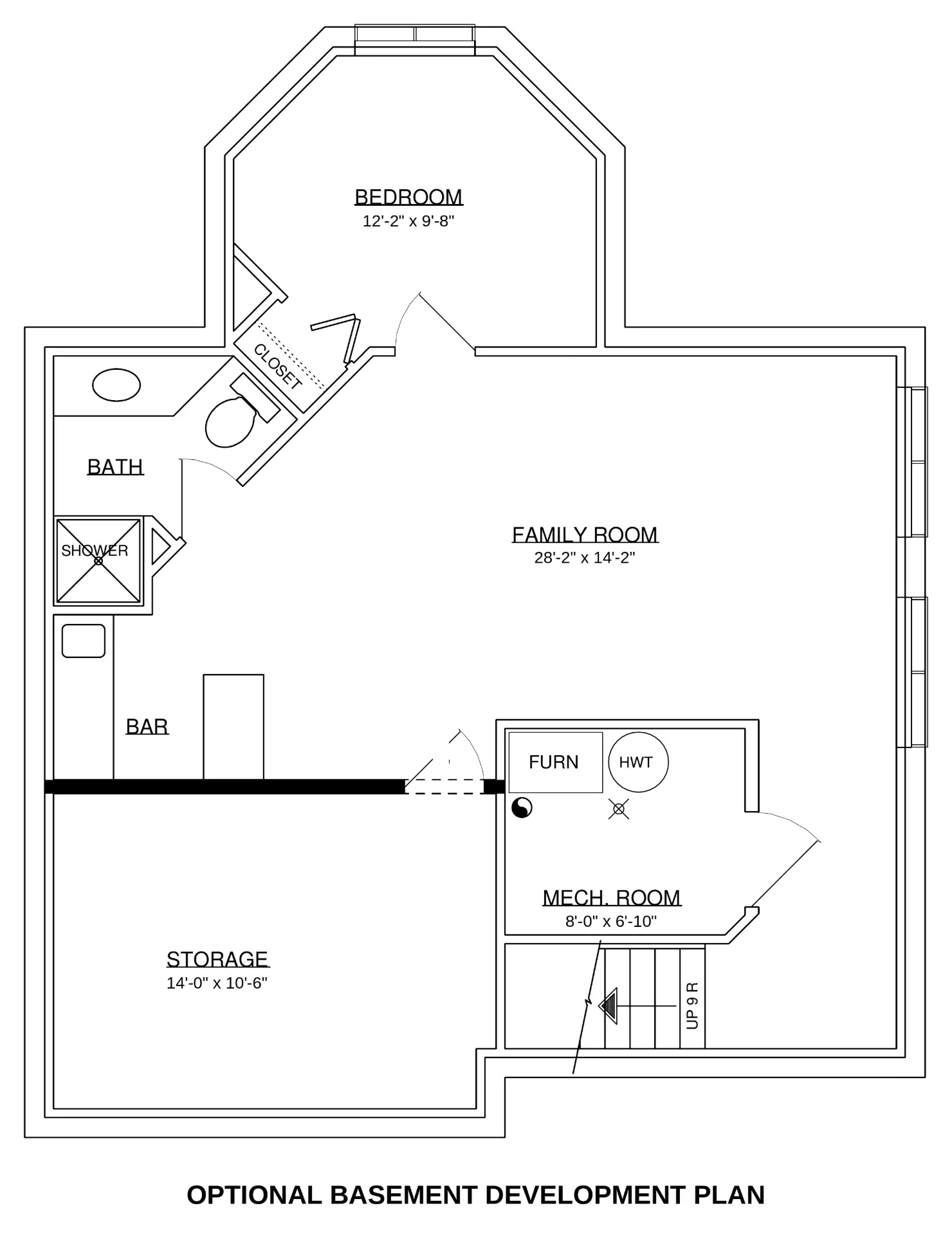

Basement

RoomsSizesDetails
Bedroom12'-2" x 9'-8"—
Family room28'-2" x 14'-2"—
Storage14'-0" x 10'-6"—
Mechanical room——

Plan feature(s)

  • Narrow lot
  • 30' wide
  • Bonus room
  • Fireplace
