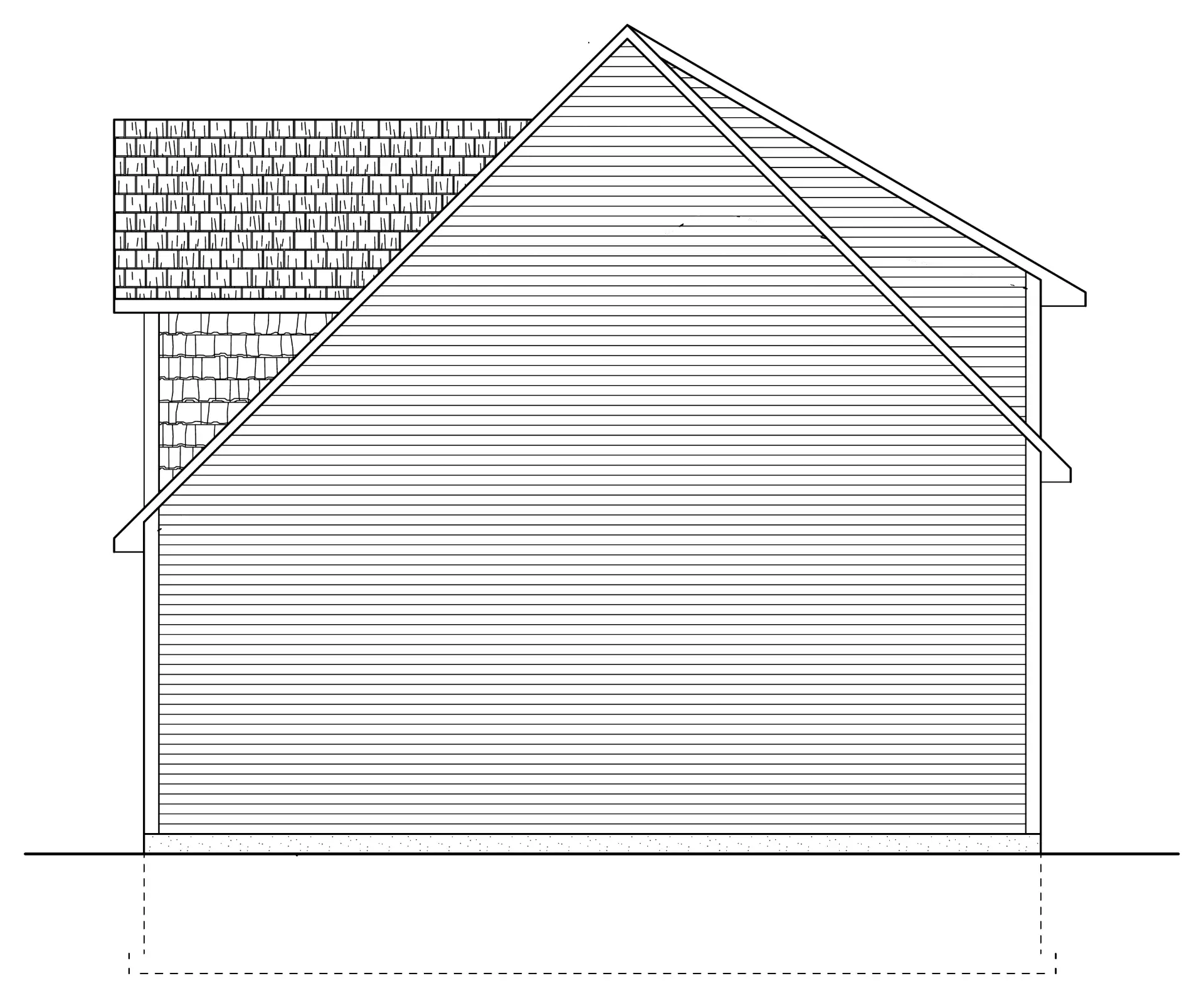

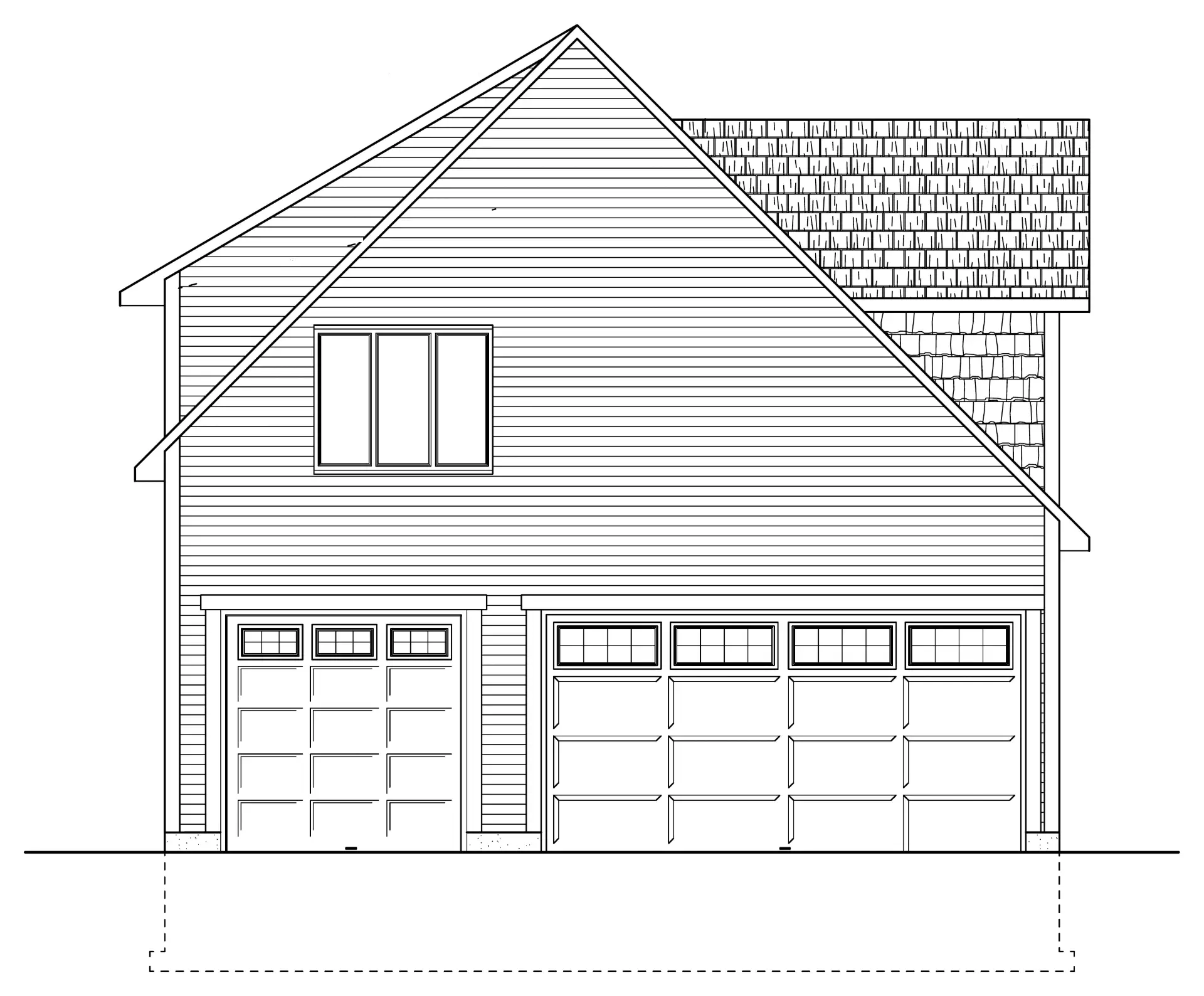

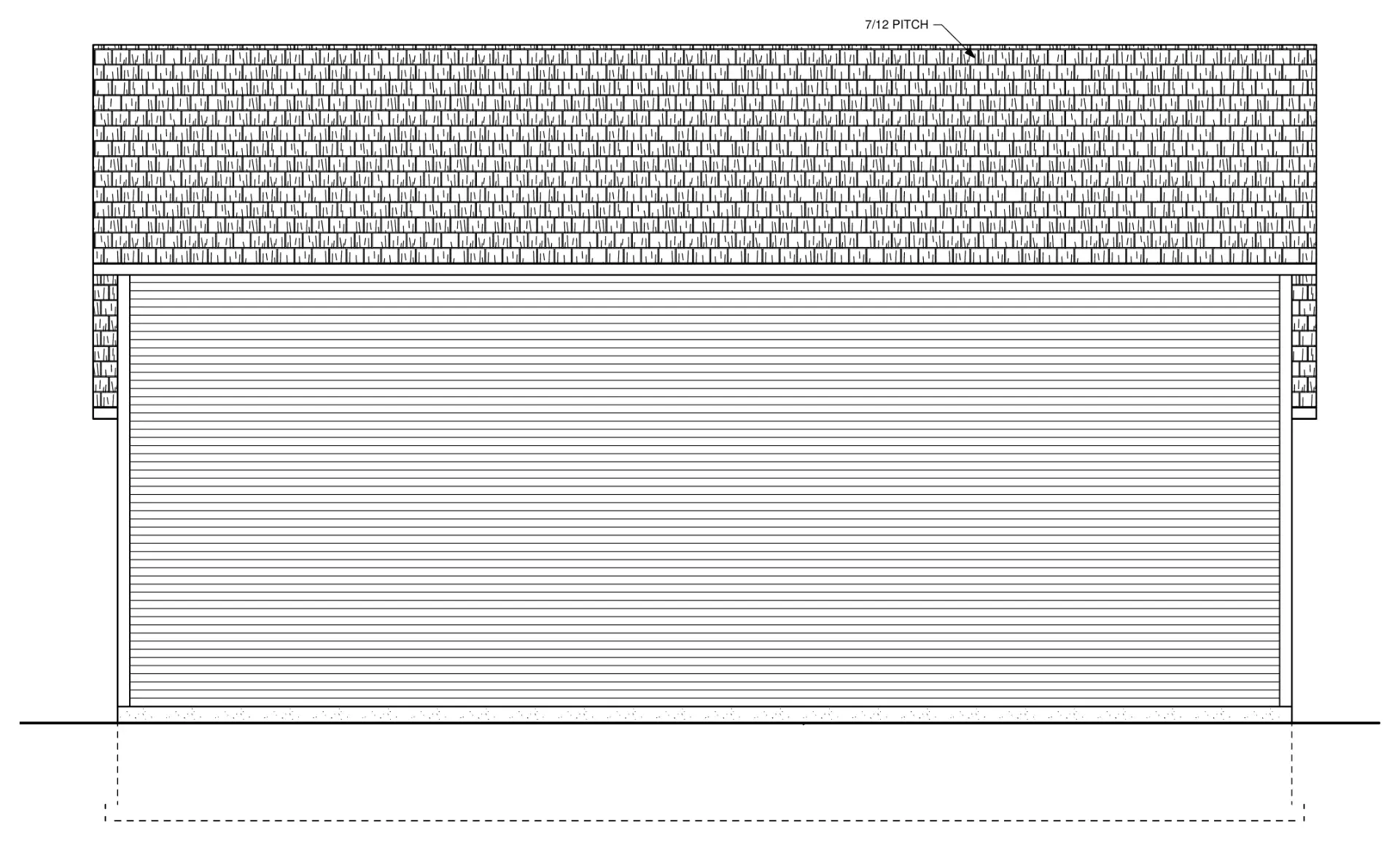

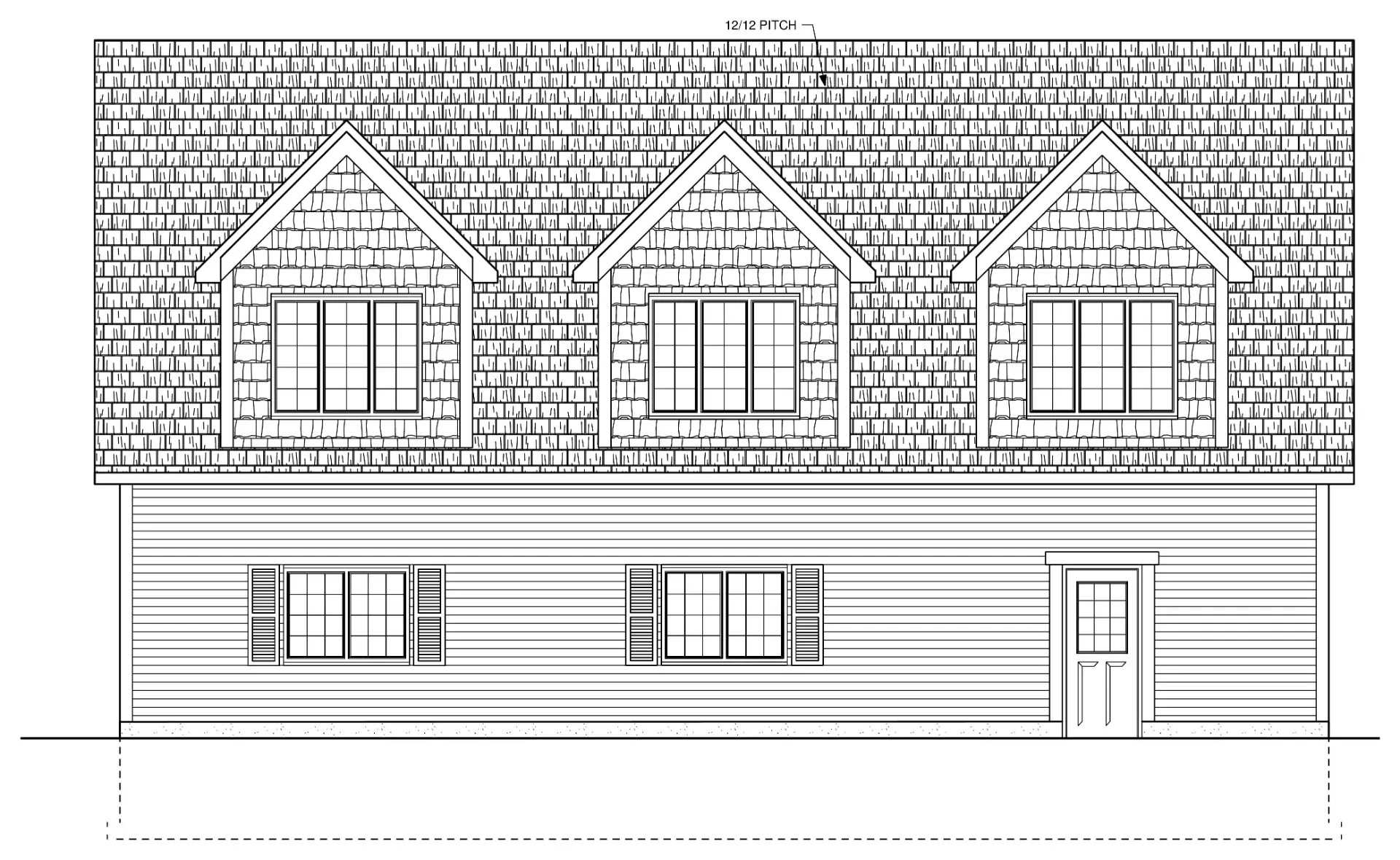

Exterior & Interior Views (5)
Floor Plans (2)
Plan No. 3024
$1,395.00
A great stand-alone home or a perfect secondary suite for a big backyard, this 48' x 30' carriage house has a 1,267 sq. ft. suite on the upper floor. The main floor is a large three-car garage with an 8' and a 16' overhead door, a side man door, and a mechanical room with storage under the stairs. Upstairs, the kitchen has an island with an eating bar and opens to the dining area and living room. There are three bedrooms, each with its own closet, along with a full bath and a linen closet. Three shake-trimmed dormers across the front let light into the living room and two of the bedrooms.
General specifications
- Total living area
- 1,267 sq.ft.
- 2nd level
- 1,267 sq.ft.
- Stories
- 2
- Walk out basement
- No
- Width
- 48'0"
- Depth
- 30'0"
- Ceiling style
- Vaulted
- Exterior wall
- 2x6
- Foundation type included in the plan
- 4FT Concrete Frost Wall - Slab On Grade
Room breakdown
- Bedroom(s)
- 3
- Convertible (max bedrooms)
- 3
- Full baths
- 1
- Garage type
- Three-car garage (47'0" × 29'0")
- Bonus room over garage
- Yes

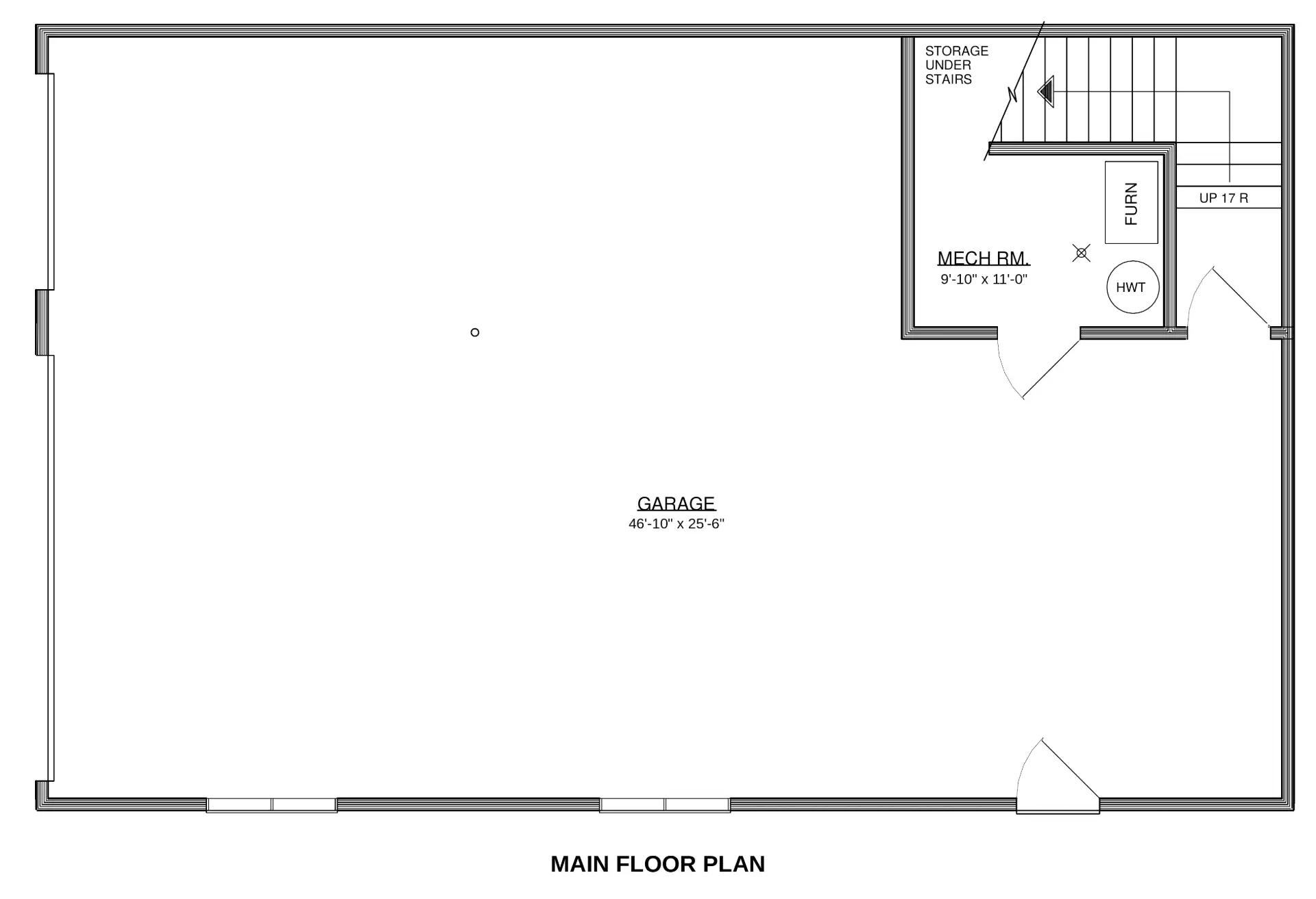

Main Floor
| Rooms | Sizes | Details |
|---|---|---|
| Garage | 46'-10" x 25'-6" | Irregular shape with Mech Room and Stairs |
| Mechanical room | — | Laundry optional |
Second Floor
| Rooms | Sizes | Details |
|---|---|---|
| Bedroom No.1 | 13'-4" x 13'-4" | — |
| Bedroom No.2 | 13'-0" x 9'-8" | Ceiling with Dormer |
| Bedroom No.3 | 9'-0" x 11'-6" | Ceiling with Dormer |
| Bathroom | — | 3-piece |
| Kitchen | 8'-6" x 13'-6" | Island |
| Dining room | 18'-6" x 13'-0" | — |
| Living room | 18'-4" x 12'-0" | Sloped Ceiling/Dormer |
