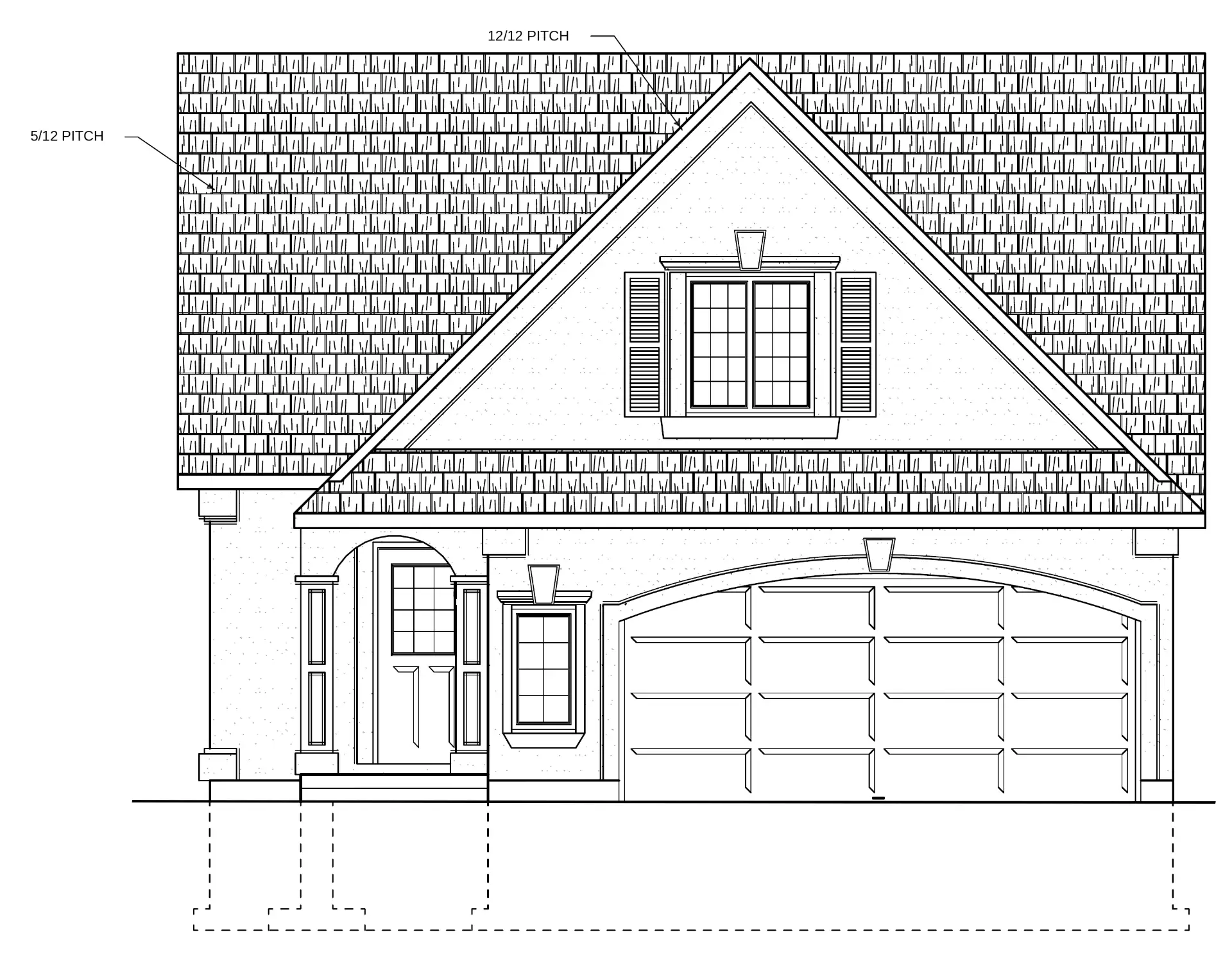

Plan No. 3101 outdoor 1

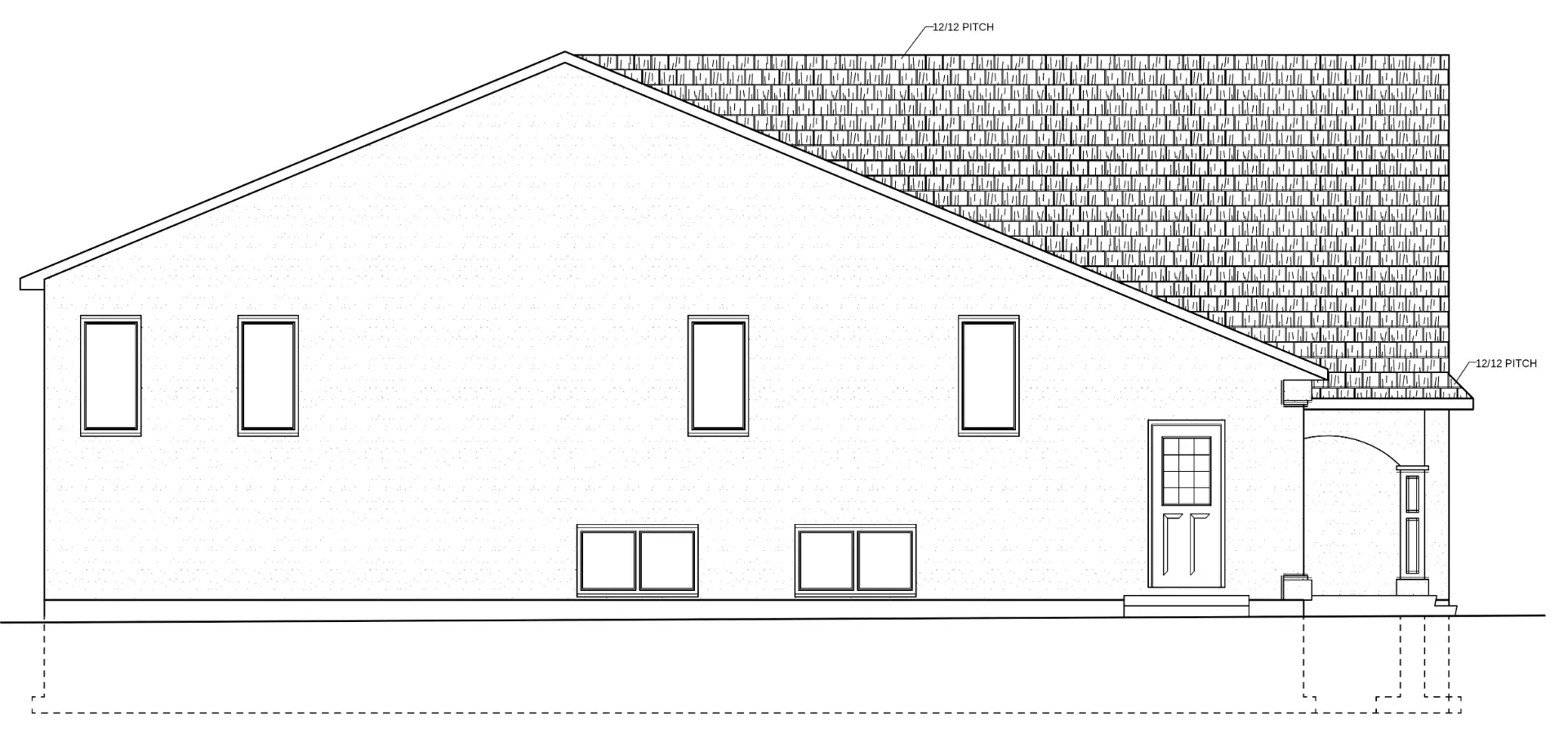

Plan No. 3101 outdoor 2

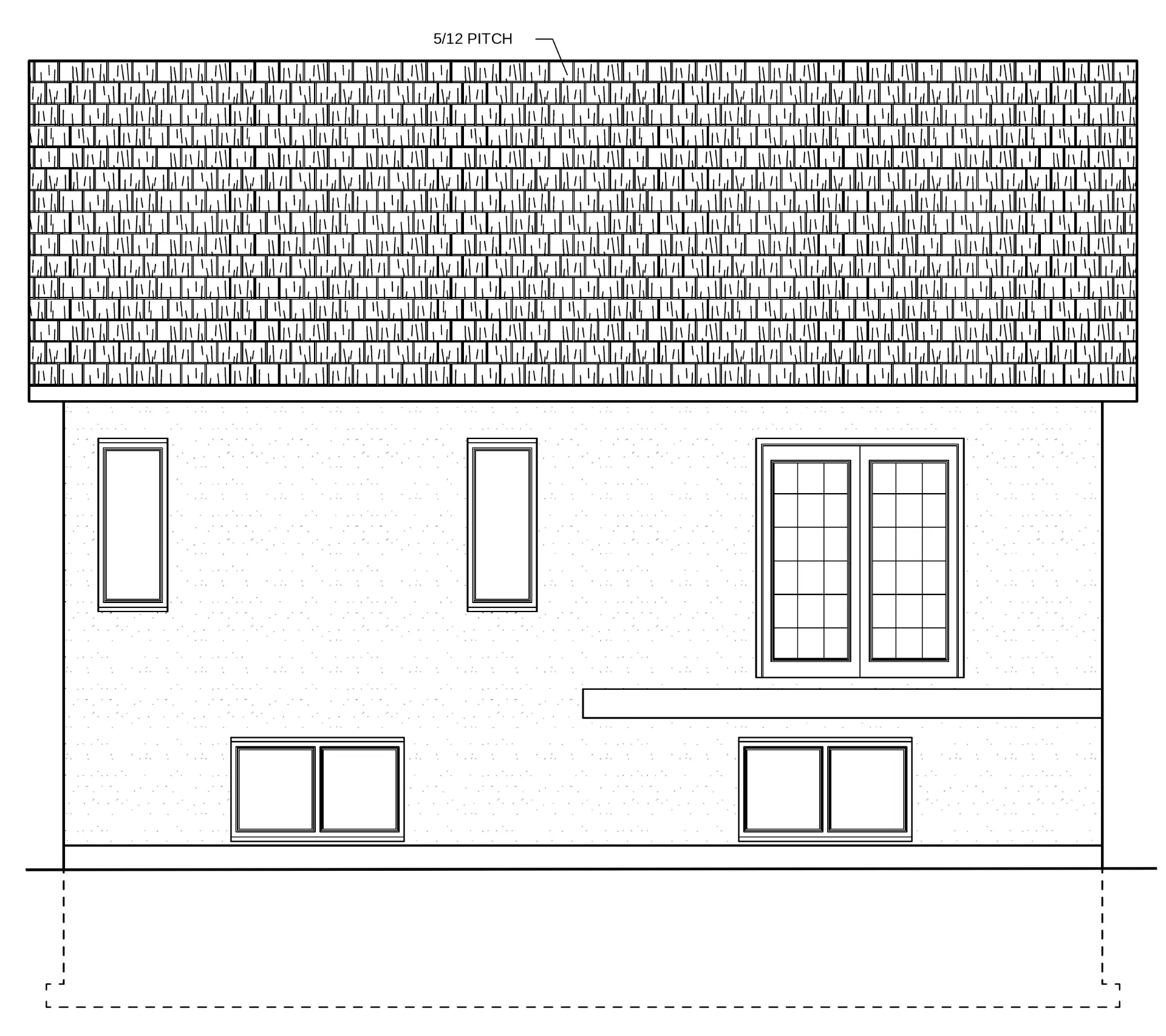

Plan No. 3101 outdoor 3

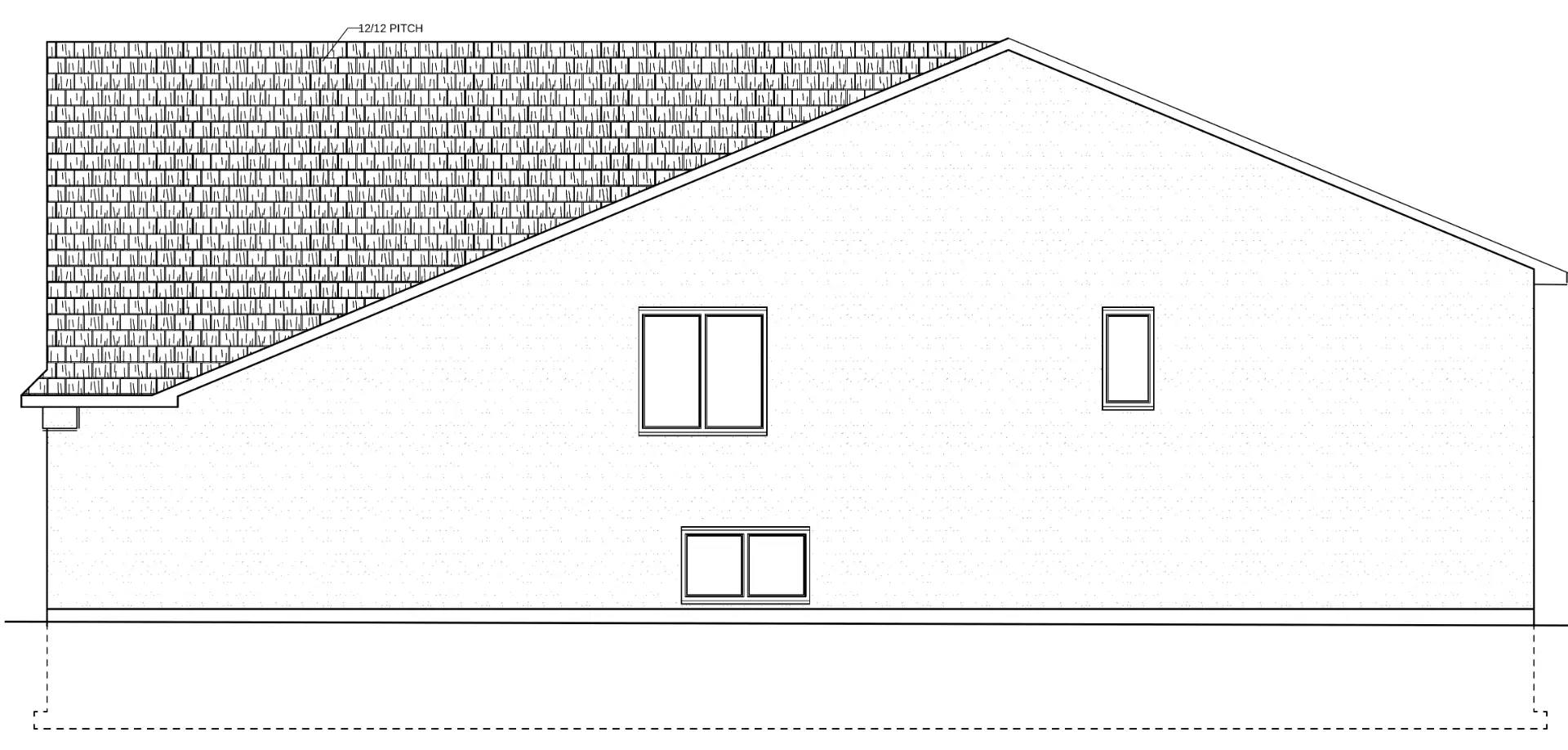

Plan No. 3101 outdoor 4

Plan No. 3101

Bi-Level

$1,395.00

1315 sqft • 2–5 bed • 3 bath

This narrow Bi-Level is ready for rental, multifamily or multigenerational living. A double garage at the front comes with a bonus room above it. From the front door, short flights lead up to the main floor and down to the basement, and a separate stair climbs from the living room level to the bonus room over the garage. The living room runs along the left side into an island kitchen with an eating bar, and the dining area at the back opens through a patio door to a future deck. The master bedroom has a bi-pass closet and its own 3-piece ensuite, with a washer/dryer closet off the hall. Bedroom No. 2 and a full bath complete the main floor. The optional basement is laid out as a self-contained suite with a kitchen and walk-in pantry, living room, two bedrooms, a full bath and a utility room.

Purchase options

General specifications

Total living area
1,315 sq.ft.
1st level
1,315 sq.ft.
Stories
1
Walk out basement
No
Width
30'0"
Depth
58'0"
Ceiling style
Flat
Exterior wall
2x6
Foundation type included in the plan
Standard Concrete 4FT+4FT Pony Wall

Room breakdown

Bedroom(s)
2–5
Convertible (max bedrooms)
5
Full baths
3
Garage type
Two-car garage (17'6" × 19'4")
Bonus room over garage
Yes
100%

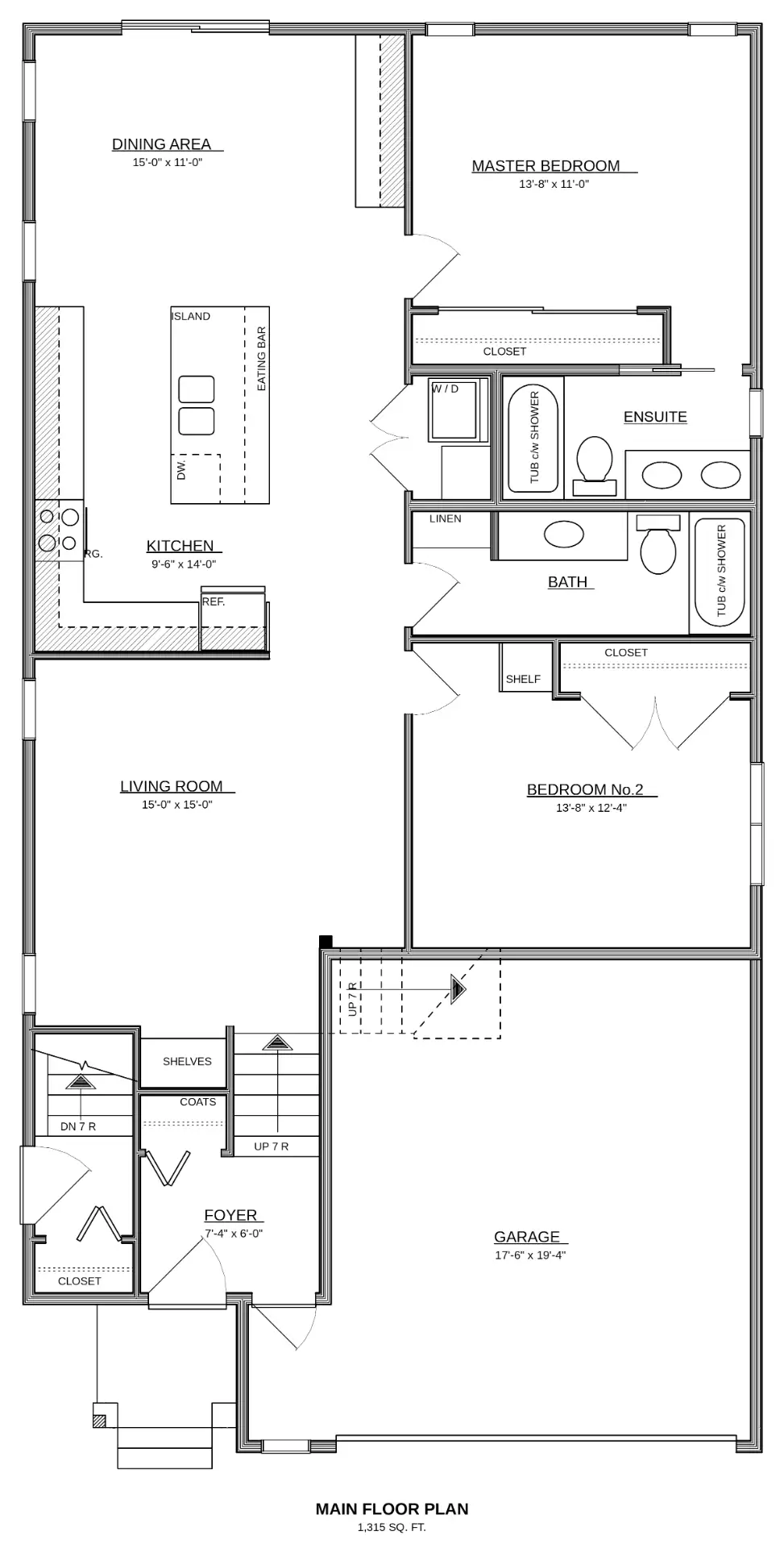

Plan No. 3101 floor plan sheet 1

Main Floor

RoomsSizesDetails
Kitchen9'-6" x 14'-0"Island
Dining room15'-0" x 11'-0"—
Living room15'-0" x 15'-0"—
Master bedroom13'-8" x 11'-0"—
Bedroom No.213'-8" x 12'-4"—
Ensuite—3-piece
Bathroom—3-piece
Garage17'-6" x 19'-4"2 car garage
Bonus room11'-6" x 18'-8"—
Laundry room—Stacking Washer Dryer

Basement

RoomsSizesDetails
Kitchen16'-0" x 13'-6"—
Living11'-6" x 19'-0"—
Bathroom—3-piece
Bedroom13'-10" x 10'-4"—
Bedroom13'-10" x 10'-4"—
Mechanical room—Washer and Dryer

Plan feature(s)

  • Bonus room
  • rental suite
  • multigenerational
  • multifamily
  • Island
  • narrow
  • 30'
