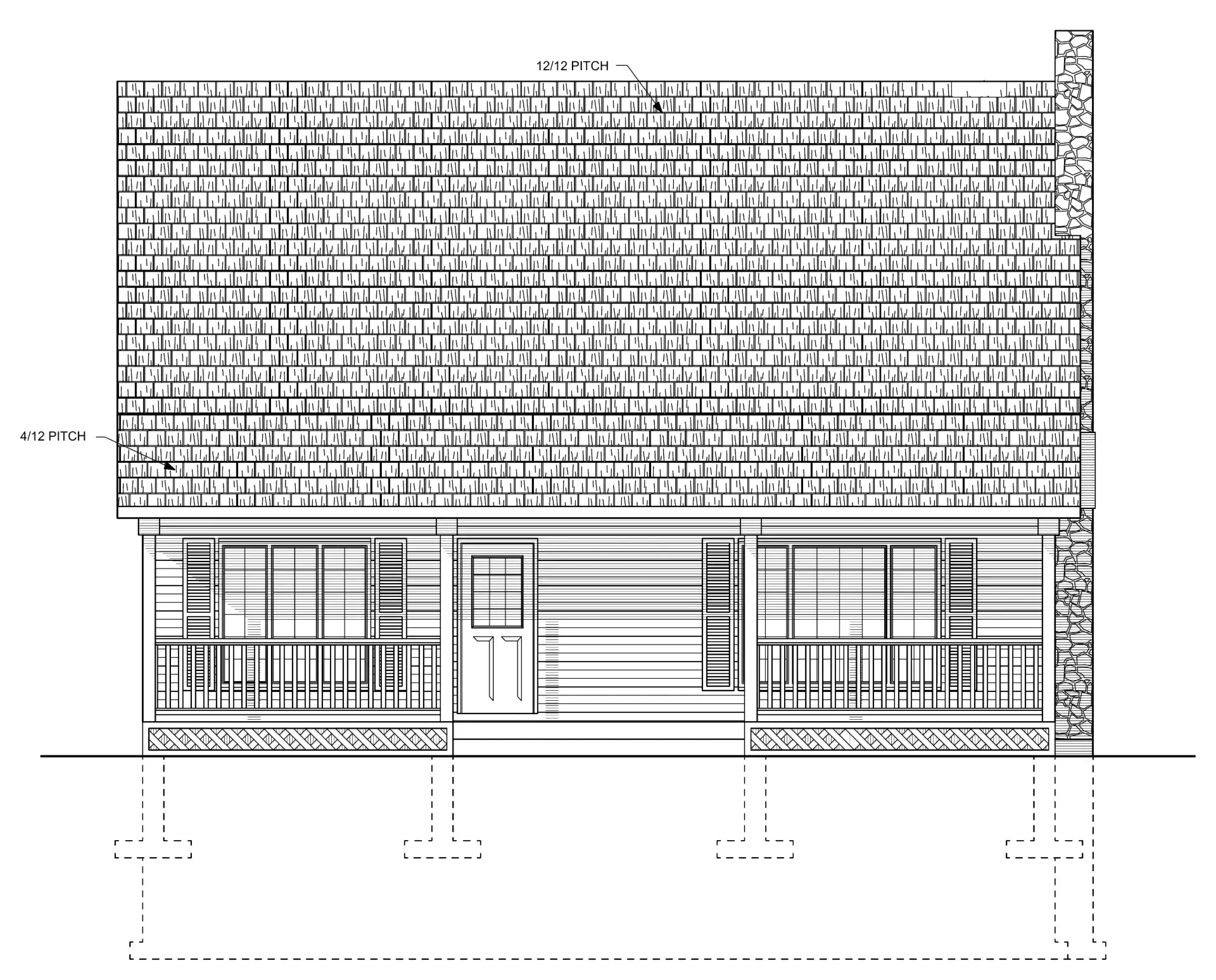

Plan No. 4081 outdoor 1

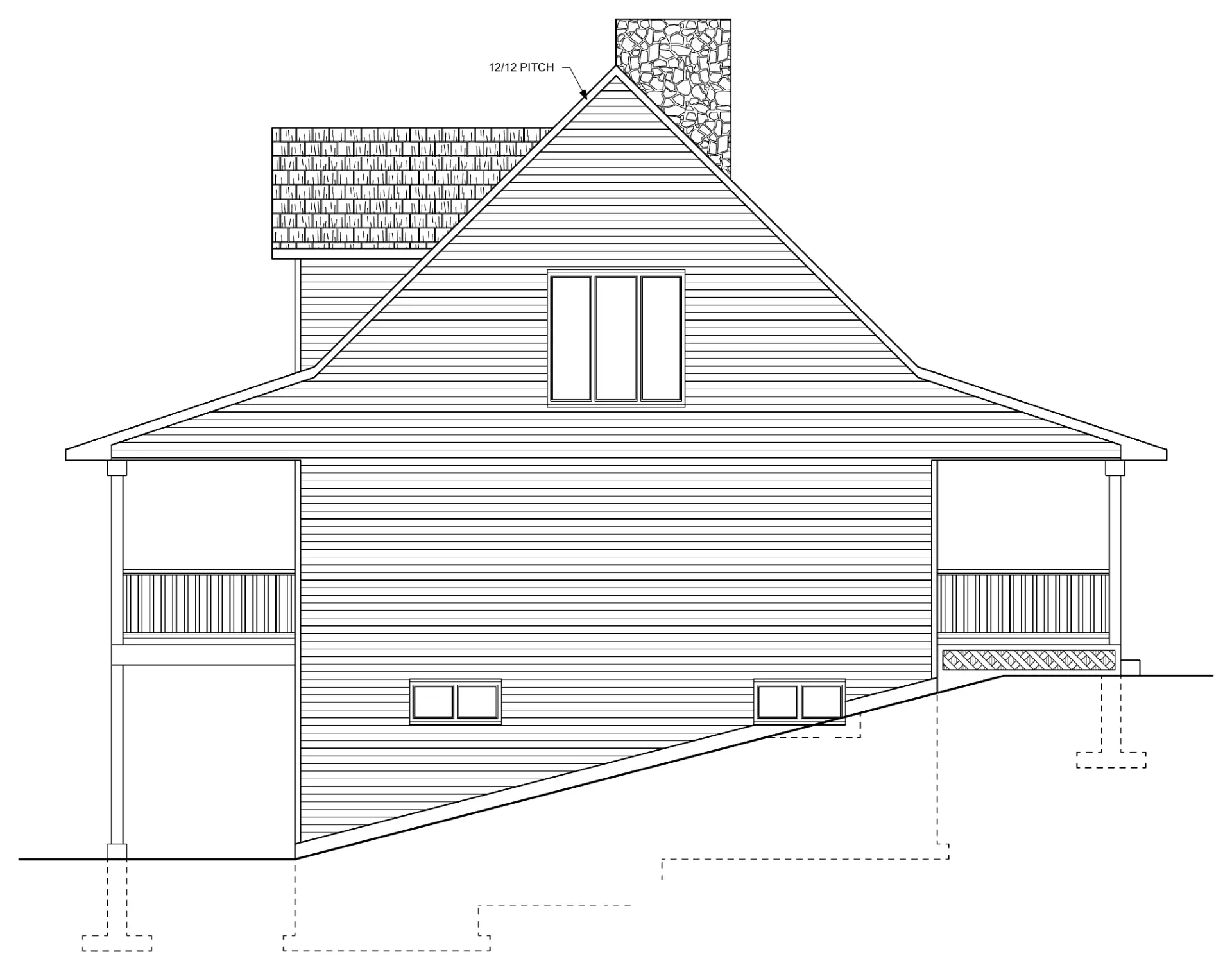

Plan No. 4081 outdoor 2

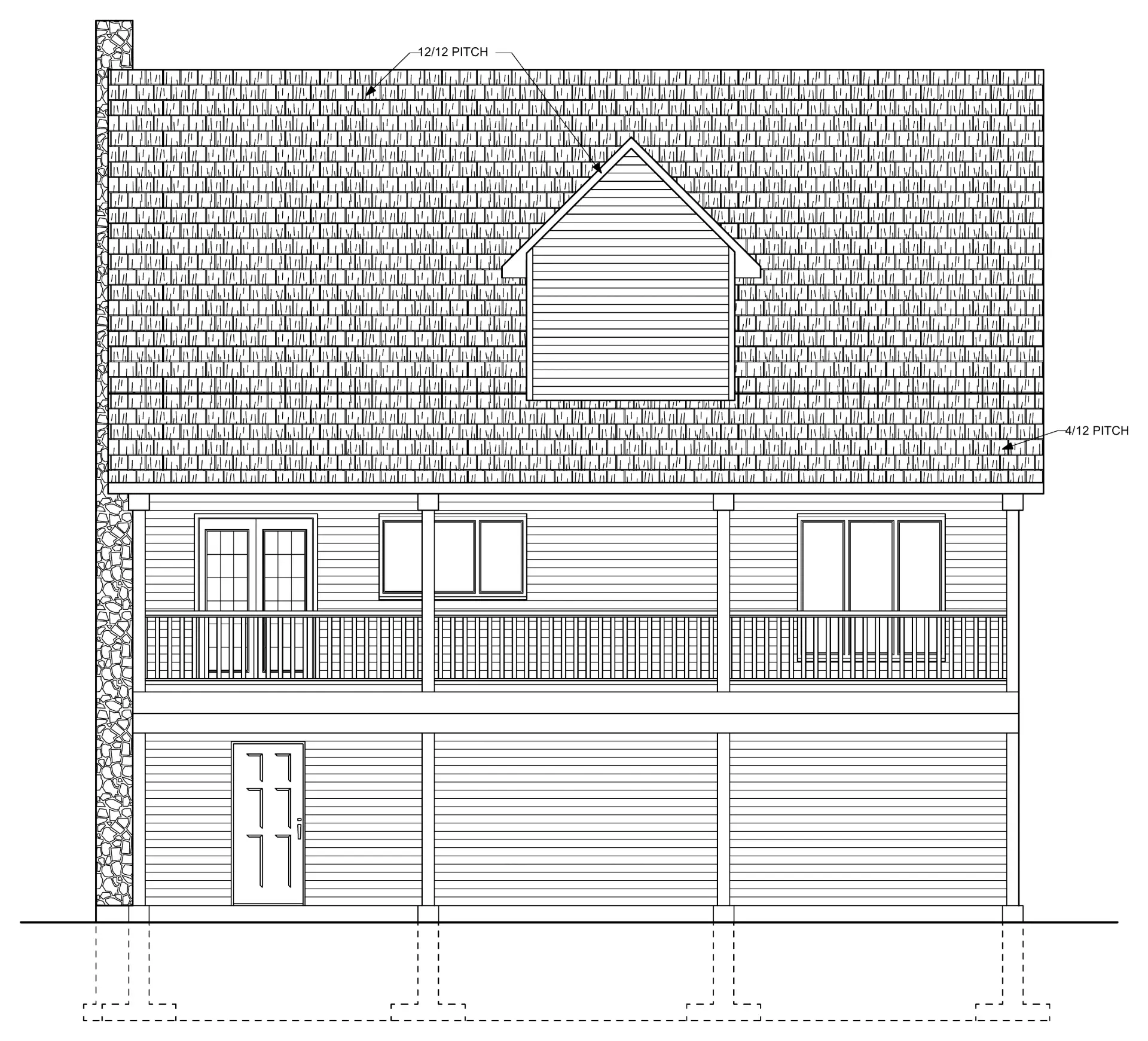

Plan No. 4081 outdoor 3

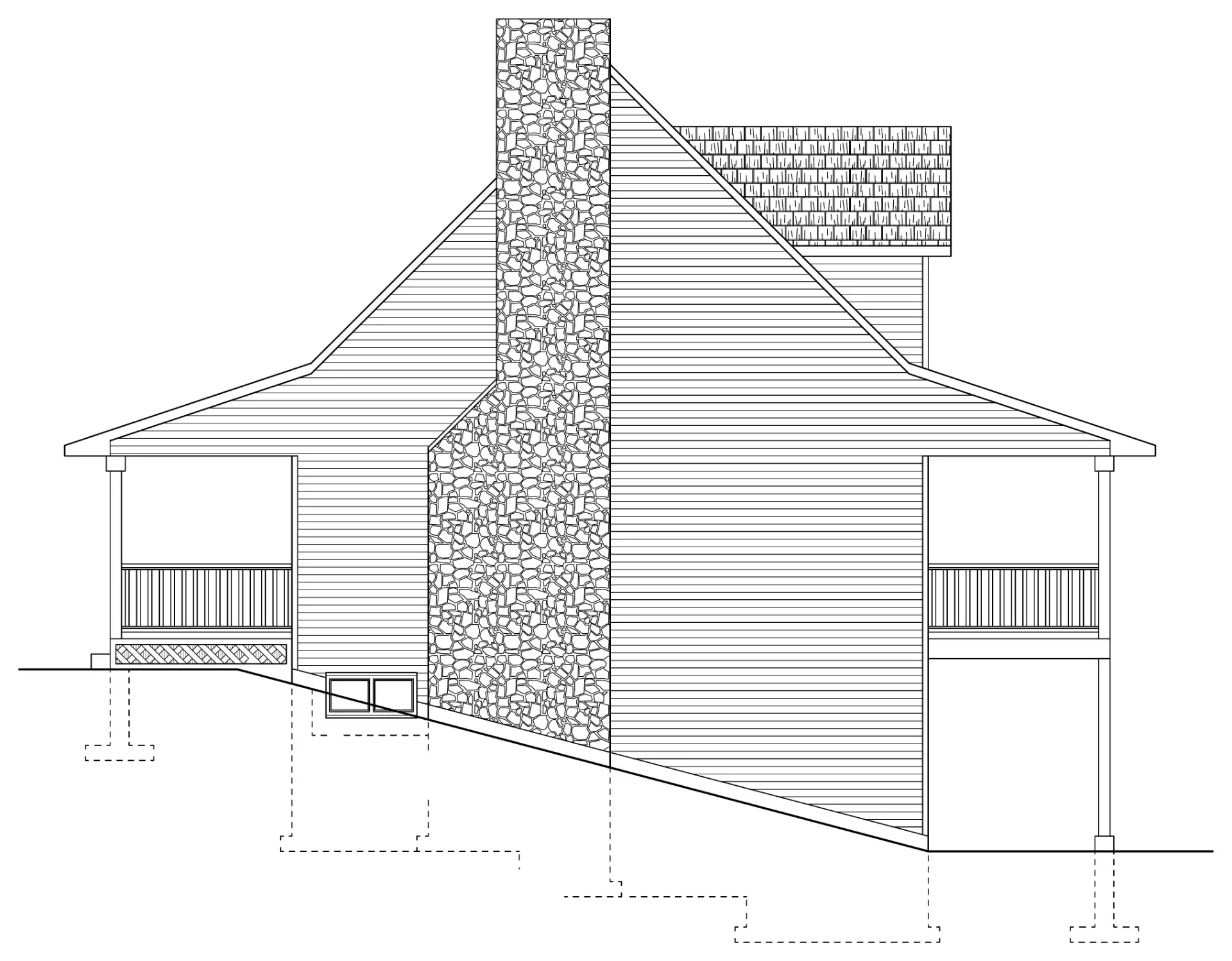

Plan No. 4081 outdoor 4

Plan No. 4081

Cottage

$1,395.00

1348 sqft • 3–5 bed • 2 bath

A classic 1 1/2 storey cottage/farmhouse with covered verandas front and back and a walk-out basement. The 1,008 sq. ft. main floor is built around a bright open kitchen, dining and living area with a free-standing island and a stone-faced fireplace, while a garden door opens to the rear veranda. The master bedroom and a second bedroom share the main bath, and a stacked washer/dryer closet keeps laundry on the main floor. Upstairs, a loft overlooks the living room below and leads to a third bedroom, a full bath and a large walk-in closet tucked under the 12/12 roof. The optional walk-out basement development adds two bedrooms, a family room, a full bath and a utility room.

Purchase options are not configured for this plan yet.

General specifications

Total living area
1,348 sq.ft.
1st level
1,008 sq.ft.
2nd level
340 sq.ft.
Stories
1.5
Walk out basement
Yes
Width
36'0"
Depth
44'0"
Exterior wall
2x6
Foundation type included in the plan
Standard Concrete 8FT

Room breakdown

Bedroom(s)
3–5
Convertible (max bedrooms)
5
Full baths
3
Garage type
No Garage
Bonus room over garage
No
100%

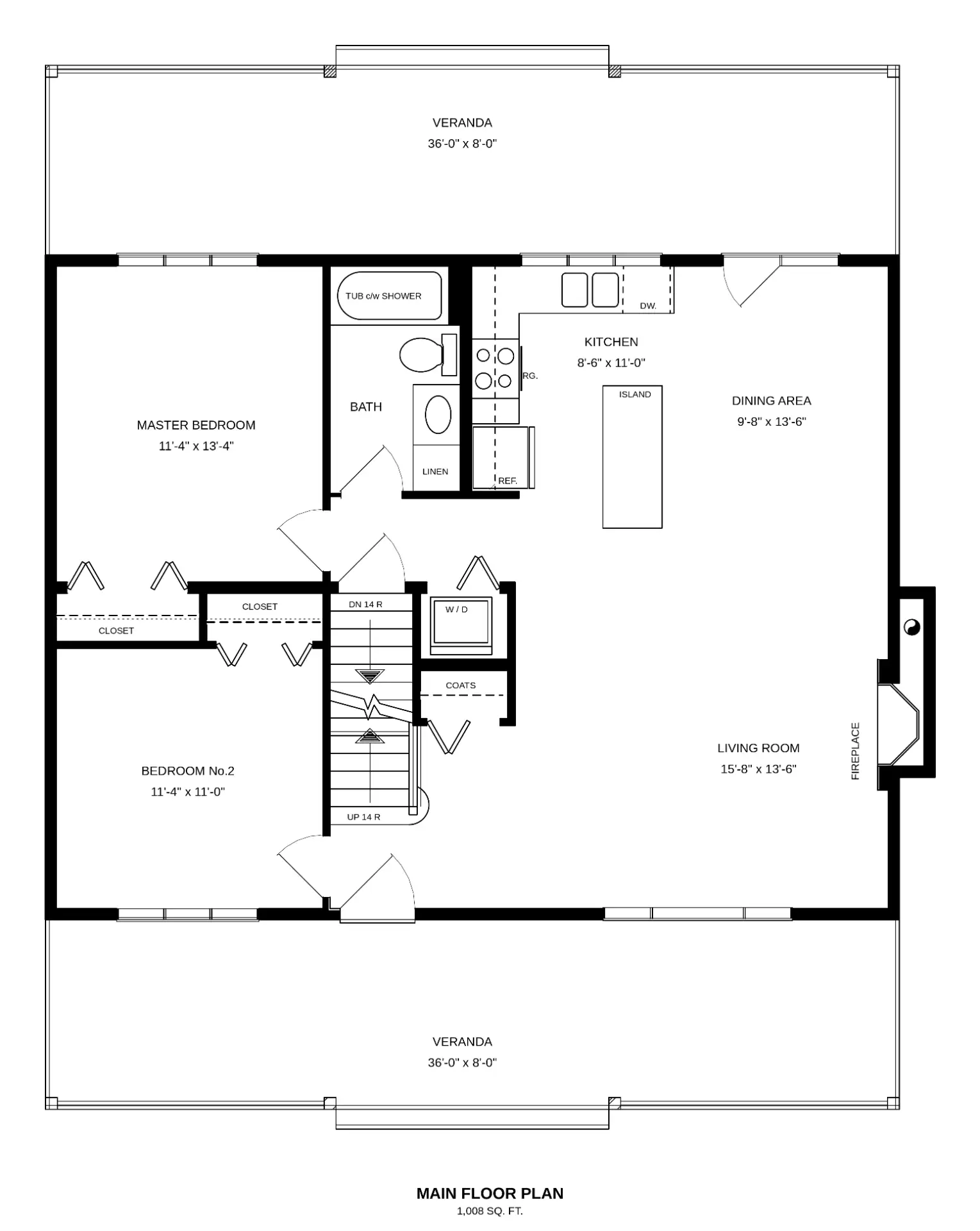

Plan No. 4081 floor plan sheet 1

Main Floor

RoomsSizesDetails
Kitchen8'-6" x 11'-0"Island, Open To Above
Bedroom No.211'-4" x 11'-0"—
Master bedroom11'-4" x 13'-4"—
Living room15'-8" x 13'-6"Open To Above, Fireplace
Dining room9'-8" x 13'-6"Open To Above
Bathroom—3-piece

Second Floor

RoomsSizesDetails
Bedroom No.311'-4" x 13'-2"—
Loft8'-0" x 7'-10"—
Bathroom—3-piece

Basement

RoomsSizesDetails
Bathroom—3-piece
Bedroom10'-10" x 12'-10"—
Bedroom10'-10" x 10'-6"—

Plan feature(s)

  • Veranda
  • Loft
  • Walk-out Basement
  • Fireplace
