Plan No. 645
$995.00

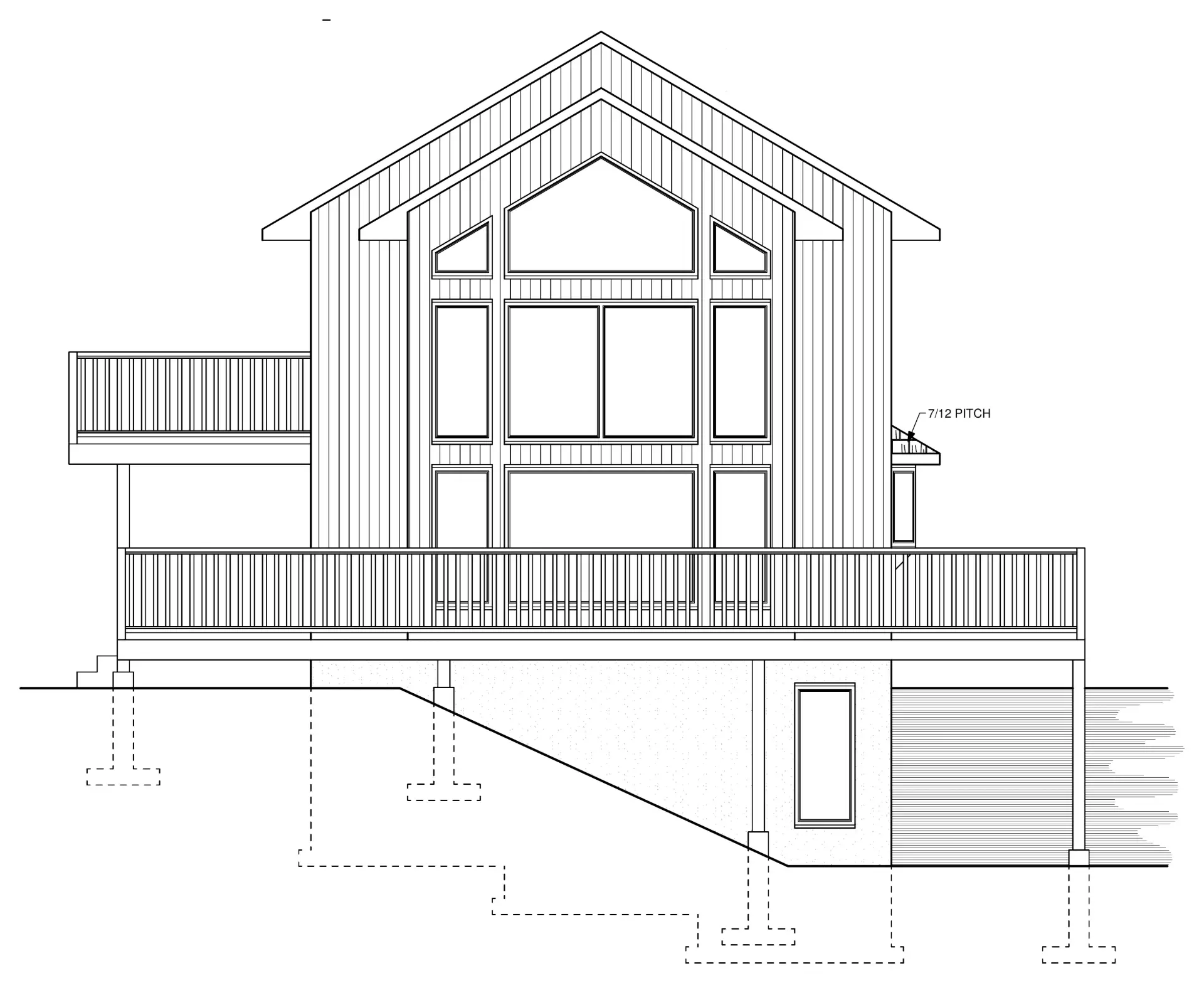

A 1,186 sq. ft. 1-1/2 storey cabin built for a sloping lot, with a walkout basement and a deck that wraps the front and side. A tall wall of windows lights the open living room, which has a fireplace, and the dining area and island kitchen with a bay window. The main floor also has a mud room, a bedroom and a full bath. Upstairs, a loft overlooks the living room, and a second bedroom opens onto its own deck beside a full bath. The optional walkout basement adds a family room, a den, a bath and laundry.
General specifications
- Total living area
- 1,186 sq.ft.
- 1st level
- 768 sq.ft.
- 2nd level
- 418 sq.ft.
- Stories
- 2
- Walk out basement
- Yes
- Width
- 24'0"
- Depth
- 32'0"
- Exterior wall
- 2x6
- Foundation type included in the plan
- Standard Concrete 8FT
Room breakdown
- Bedroom(s)
- 2–3
- Convertible (max bedrooms)
- 3
- Full baths
- 3
- Garage type
- No Garage
- Bonus room over garage
- No

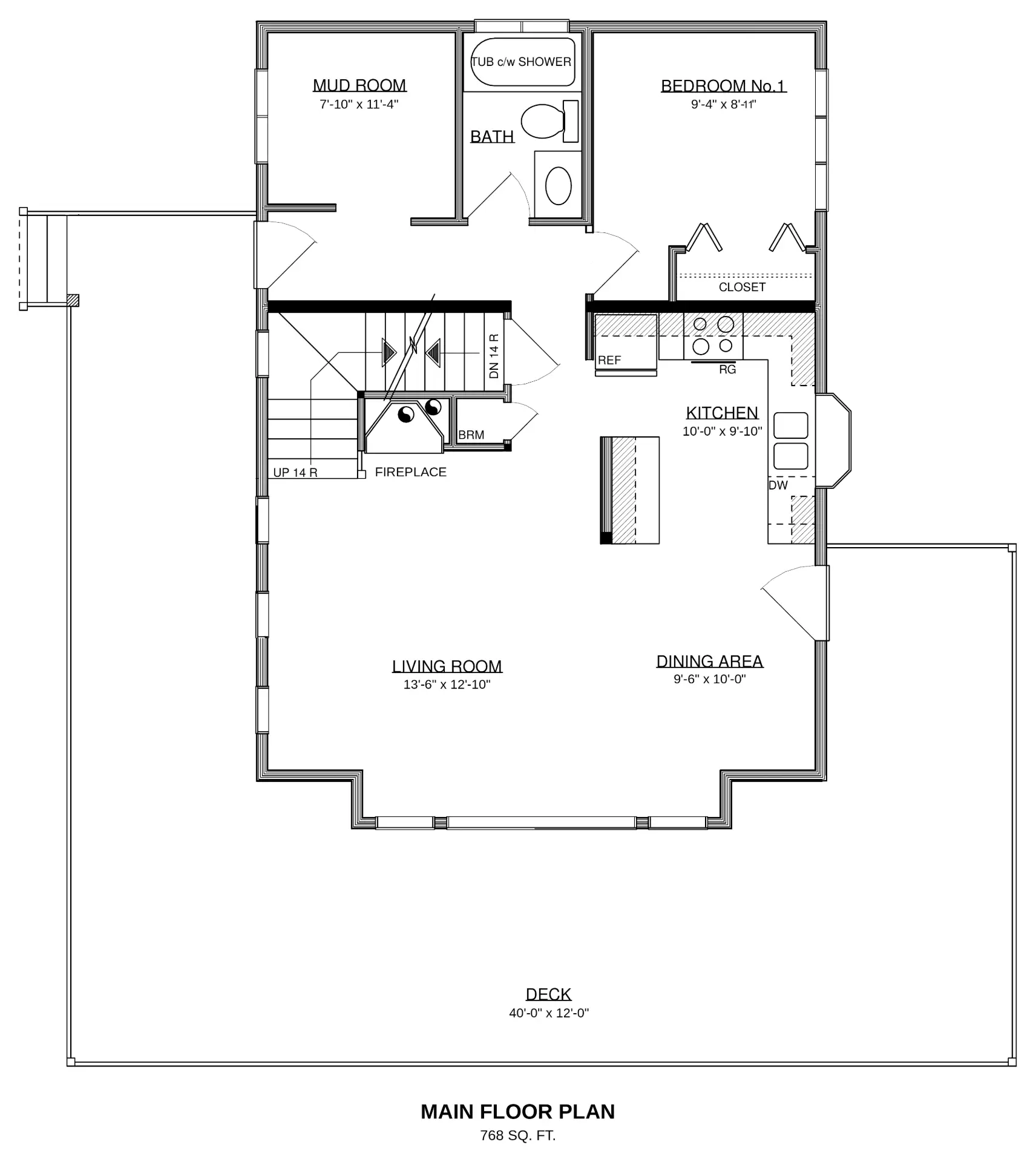

Main Floor
| Rooms | Sizes | Details |
|---|---|---|
| Kitchen | 10'-0" x 9'-10" | — |
| Living room | 13'-6" x 12'-10" | — |
| Dining room | 9'-6" x 10'-0" | — |
| Bedroom No.1 | 9'-4" x 8'-11" | — |
| Bathroom | — | 3-piece |
| Mud Room | 7'-10" x 11'-4" | — |
Second Floor
| Rooms | Sizes | Details |
|---|---|---|
| Bedroom No.2 | 14'-4" x 11'-6" | — |
| Bathroom | — | 3-piece |
| Loft | 10'-4" x 11'-10" | — |
Basement
| Rooms | Sizes | Details |
|---|---|---|
| Bathroom | — | 3-piece |
| Bedroom/Den | 8'-4" x 10'-8" | — |
| Family room | 22'-4" x 13'-10" | — |
| Laundry room | — | — |
| Mechanical room | — | — |
