Plan No. 940

Bungalow

$1,395.00

1600 sqft • 2–4 bed • 2 bath

A covered veranda runs across the front of this 1,600 sq. ft. bungalow and turns the corner past the kitchen. Inside, you step down into a sunken living room lit by a tall arched window and warmed by a fireplace, with a curved wall opening it to the dining area. The kitchen's L-shaped island and built-in desk sit next to a walk-in pantry, a china cabinet and open shelves. A rear entry with a bench leads past the laundry and a two-piece lav, and a front office could double as a guest room. The master bedroom has its own closet, and the main bath has an air tub and a custom shower. Downstairs, the optional development adds a play room, a rec room with a wet bar, a family room, a bedroom and a bath.

Purchase options

General specifications

Total living area
1,600 sq.ft.
1st level
1,600 sq.ft.
Stories
1
Walk out basement
No
Width
56'0"
Depth
36'0"
Exterior wall
2x6
Foundation type included in the plan
Standard Concrete 8FT

Room breakdown

Bedroom(s)
2–4
Convertible (max bedrooms)
4
Full baths
2
Half baths
1
Garage type
No Garage
Bonus room over garage
No
100%

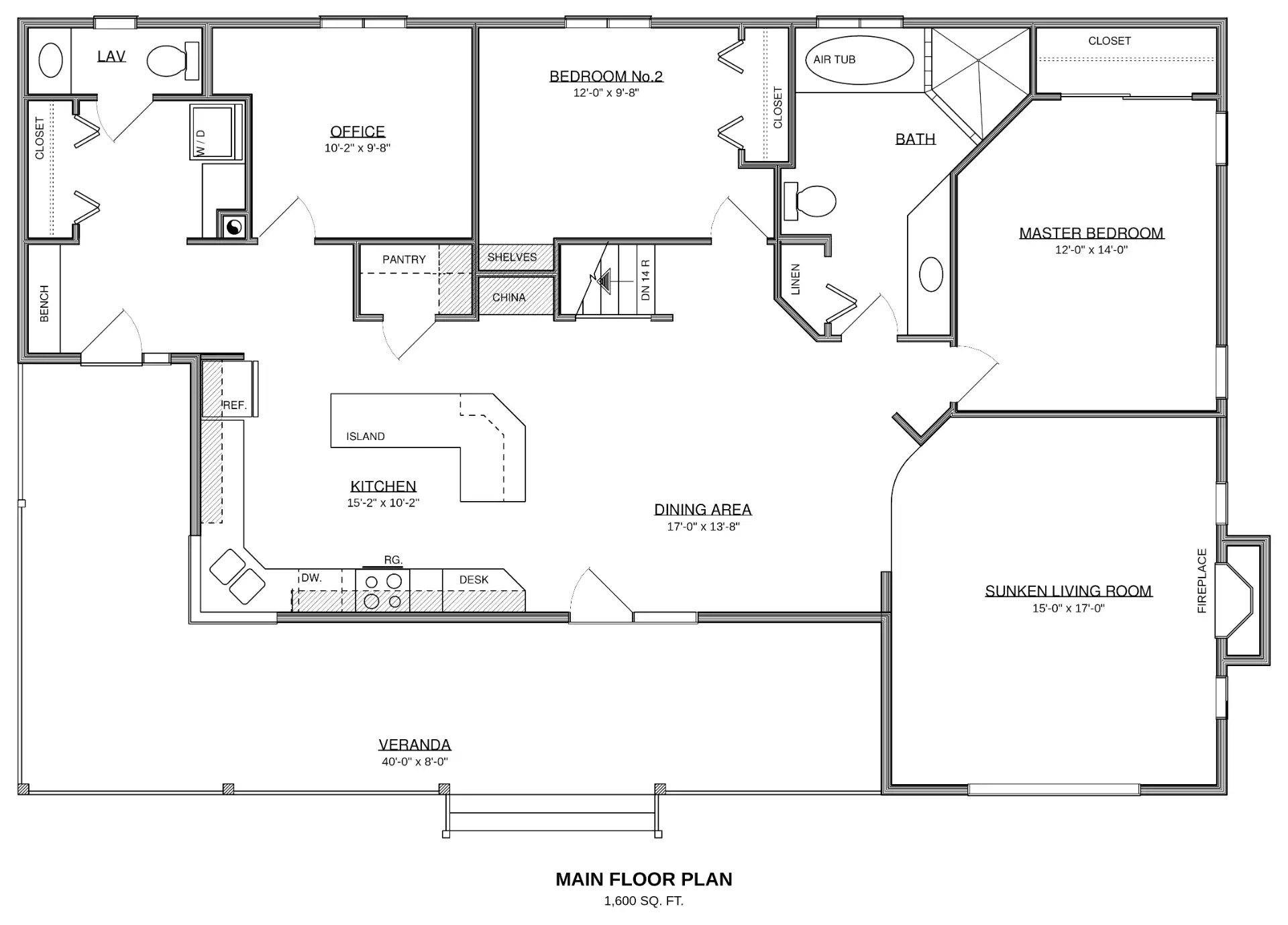

Plan No. 940 floor plan sheet 1

Main Floor

RoomsSizesDetails
Kitchen15'-2" x 10'-2"Island, Pantry
Dining room17'-0" x 13'-8"—
Living room15'-0" x 17'-0"Fireplace, Sunken Living Room
Master bedroom12'-0" x 14'-0"—
Bedroom No.212'-0" x 9'-8"—
Home office10'-2" x 9'-8"—
Bathroom—4-piece
Lav—2-piece
Laundry—Stacking Washer and Dryer

Basement

RoomsSizesDetails
Bathroom—3-piece
Bedroom11'-6" x 12'-8"—
Family room14'-0" x 20'-8"—
Mechanical room——
Rec Room24'-0" x 12'-10"—
Play Room19'-0" x 13'-4"—
Cold Room——

Plan feature(s)

  • Sunken Living Room
  • Fireplace
