Plan No. 974

Cabin

$1,395.00

1524 sqft • 2–3 bed • 2 bath

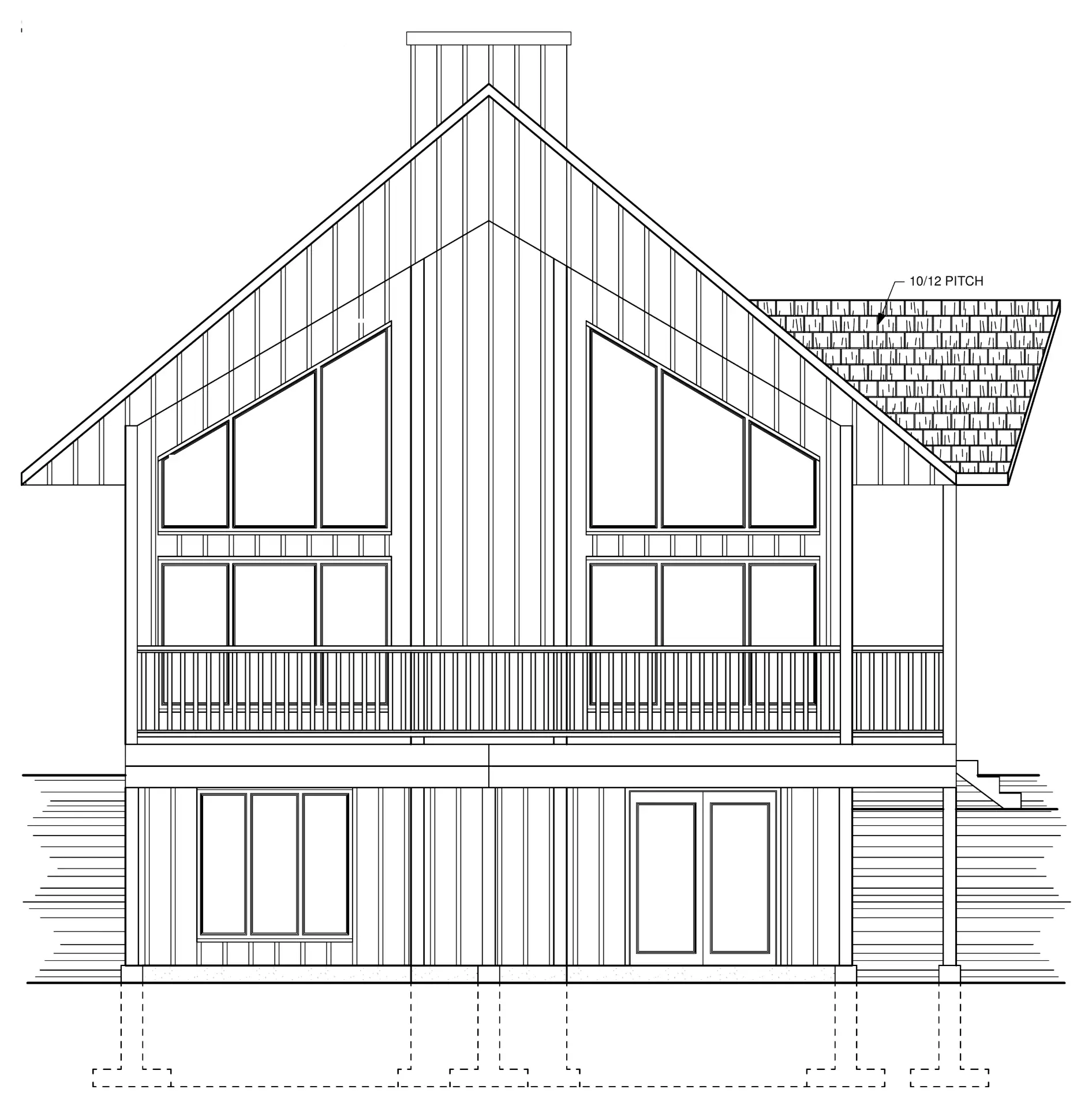

This 1,524 sq. ft. chalet has a steep A-frame gable filled with tall raked windows that look out over a large pointed deck. The living and dining area is open to the floor above, and an angled island with the range anchors the kitchen. The main floor master bedroom, a full bath and the laundry are tucked behind the kitchen, and a side deck leads to a second entry. Upstairs, a loft overlooks the living room beside a large bedroom with sloped ceilings. The walkout basement opens to grade at the front, and the optional development adds a family room with patio doors, a bedroom, a shower room, a lav and a cold room.

Purchase options

General specifications

Total living area
1,524 sq.ft.
1st level
1,008 sq.ft.
2nd level
516 sq.ft.
Stories
1.5
Walk out basement
Yes
Width
28'0"
Depth
36'0"
Ceiling style
Vaulted
Exterior wall
2x6
Foundation type included in the plan
Standard Concrete 8FT

Room breakdown

Bedroom(s)
2–3
Convertible (max bedrooms)
3
Full baths
2
Garage type
No Garage
Bonus room over garage
No
100%
Plan No. 974 floor plan sheet 1

Main Floor

RoomsSizesDetails
Kitchen10'-10" x 10'-0"Island
Living room16'-2" x 18'-2"Optional Fireplace/Woodstove
Dining room10'-10" x 11'-4"—
Master bedroom15'-2" x 11'-8"—
Laundry room——
Bathroom—3-piece

Second Floor

RoomsSizesDetails
Bedroom No.227'-0" x 11'-4"Sloped ceiling
Loft12'-0" x 14'-0"—

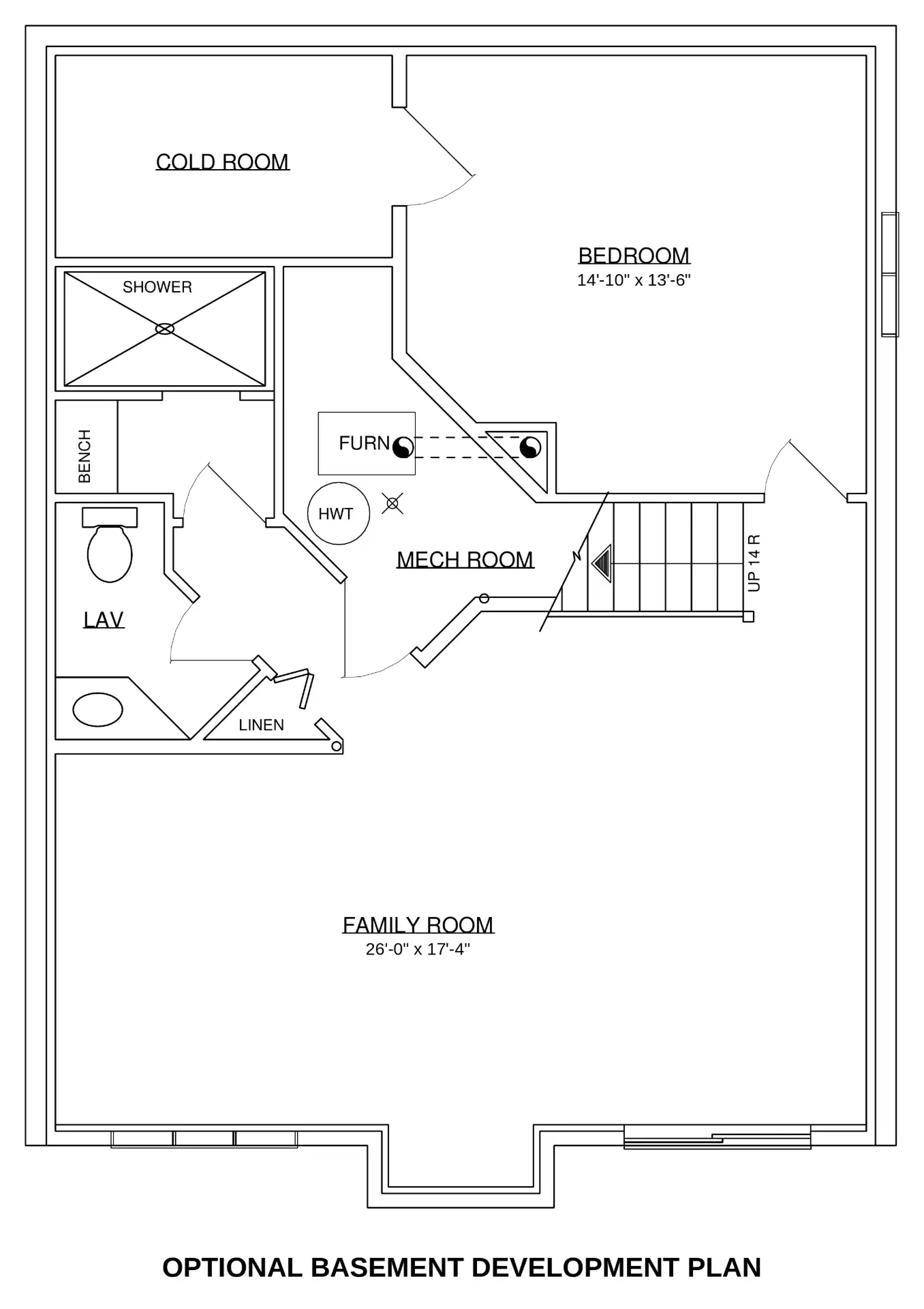

Basement

RoomsSizesDetails
Bedroom14'-10" x 13'-6"—
Family room26'-0" x 17'-4"—
Mechanical room——
Cold Room——
Bathroom—3-piece

Plan feature(s)

  • Chalet
  • Optional Fireplace or Woodstove
